Stainless Turnbuckle

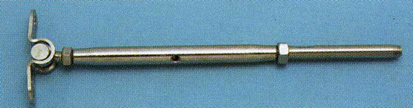

Stud to Wall Mount Turnbuckle

316 Stainless Steel

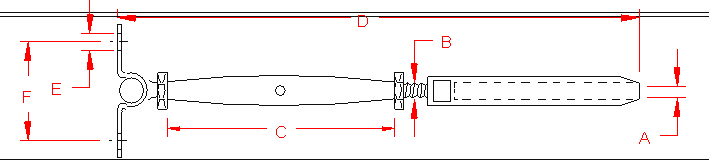

ITEM A B C D E F WT
S0784-0703 1/8" 1/4" 4.20" 7.25" 0.25" 1.58" 0.25
S0784-0704 5/32" 1/4" 4.20" 7.50" 0.25" 1.58" 0.28
S0784-0705 3/16" 1/4" 4.20" 8.00" 0.25" 1.58" 0.32
