How PM&I Can Help Prevent Delays

Rigging Toggle

Chromed Bronze

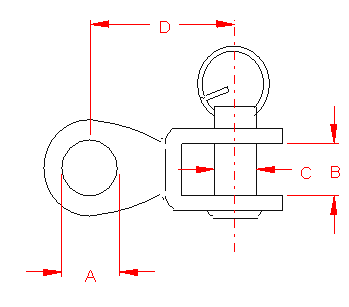

ITEM A B C D WT
S0168-CB07 1/4" 0.26" 0.25" 1.06" 0.08
S0168-CB08 5/16" 0.31" 0.31" 1.50" 0.11
S0168-CB10 3/8" 0.38" 0.37" 1.45" 0.17
S0168-CB12 7/16" 0.47" 0.43" 1.87" 0.28
S0168-CB13 1/2" 0.53" 0.50" 1.87" 0.45
S0168-CB16 5/8" 0.65" 0.62" 2.69" 0.75
