Stainless Turnbuckle

Stub and Stub Turnbuckle

316-NM Stainless Steel

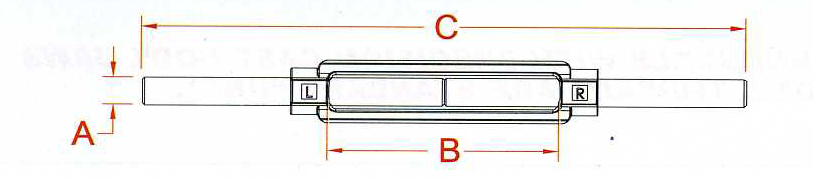

ITEM A B C WT
S0112-SS07 1/4" 4.00" 9.00" 0.27
S0112-SS08 5/16" 4.50" 10.50" 0.67
S0112-SS10 3/8" 6.00" 13.00" 0.72
S0112-SS13 1/2" 6.00" 14.13" 1.23
S0112-SS16 5/8" 6.00" 15.00" 2.25
S0112-SS20 3/4" 6.00" 16.00" 3.19
S0112-SS25 1" 6.00" 18.00" 6.32
S0112-SS25-1 1" 12.00" 24.38" 10.43
S0112-SS32-1 1-1/4" 12.00" 26.00" 14.75
