Stainless Turnbuckle

Jaw and Jaw Turnbuckle

316-NM Stainless Steel

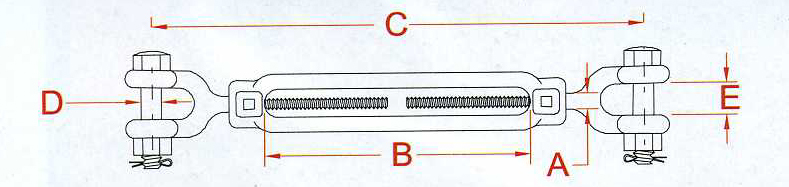

Item A Size B Adjust C D E Weight
S0108-JJ07 1/4" 4.00" 7.75" 0.25" 0.44" 0.45 lb
S0108-JJ08 5/16" 4.50" 9" 0.25" 0.5" 0.65 lb
S0108-JJ10 3/8" 6.00" 10.63" 0.31" 0.546" 0.9 lb
S0108-JJ13 1/2" 6.00" 12.00" 0.38" 0.63" 1.6 lb
S0108-JJ16 5/8" 6.00" 13.50" 0.50" 0.75" 3.05 lb
S0108-JJ20 3/4" 6.00" 15" 0.63" 1" 4.75 lb
S0108-JJ25 1" 6.00" 18.00" 0.88" 1.25" 10.59 lb
S0108-JJ25-1 1" 12.00" 24.00" 0.88" 1.25" 12.66 lb
S0108-JJ32-1 1-1/4" 12.00" 26.63" 1.16" 1.88" 22.32 lb
