Stainless Turnbuckle

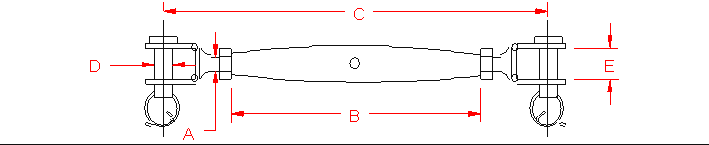

Jaw & Jaw Turnbuckle

316 Stainless Steel


Item A Size B C D E Weight
S0101-0005 3/16" 3.13" 4.75" 0.18" 0.3" 0.10 lb
S0101-0007 1/4" 3.5" 5.5" 0.22" 0.38" 0.20 lb
S0101-0008 5/16" 4.31" 6.25" 0.3" 0.4" 0.35 lb
S0101-0010 3/8" 4.87" 7.75" 0.37" 0.46" 0.55 lb
S0101-0013 1/2" 5.8" 9.50" 0.46" 0.59" 1.50 lb
S0101-0016 5/8" 7.50" 12.00" 0.6" 0.65" 2.30 lb
