Stainless Turnbuckle

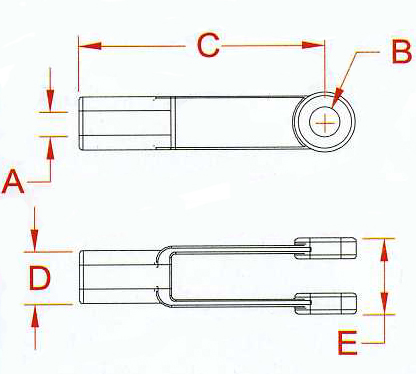

Yoke End - Clevis Unthreaded

316-NM Stainless Steel



ITEM A B C D E
S0113-U005 3/16" 0.19" 1.56" 0.31" 0.44"
S0113-U007 1/4" 0.25" 2.00" 0.44" 0.63"
S0113-U008 5/16" 0.31" 2.25" 0.50" 0.75"
S0113-U010 3/8" 0.38" 2.55" 0.63" 0.88"
S0113-U013 1/2" 0.50" 3.00" 0.81" 1.13"
S0113-U016 5/8" 0.63" 4.94" 1.06" 1.38"
S0113-U020 3/4" 0.75" 6.06" 1.25" 1.63"
