Single Shank Ball

303 Stainless Steel

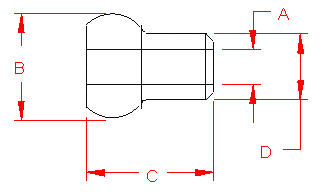

ITEM A B C D BEFORE AFTER
S0755-0001 1/16" 0.21" 0.27" 0.16" 0.13" 0.11"
S0755-0002 3/32" 0.28" 0.38" 0.23" 0.17" 0.14"
S0755-0003 1/8" 0.35" 0.50" 0.31" 0.22" 0.19"
S0755-0004 5/32" 0.42" 0.62" 0.39" 0.26" 0.22"
S0755-0005 3/16" 0.49" 0.73" 0.47" 0.30" 0.26"
S0755-0007 1/4" 0.63" 0.96" 0.63" 0.41" 0.35"
S0755-0009 5/16" 0.77" 1.19" 0.81" 0.48" 0.41"
S0755-0010 3/8"
