How PM&I Can Help Prevent Delays

Stainless Turnbuckle

Jaw & Eye Turnbuckle

316-NM Stainless Steel

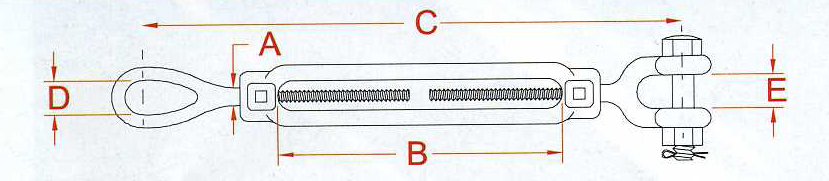

Item A Size B Adjust C D E Weight
S0109-JE07 1/4" 4.00" 7.88" 0.33" 0.44" 0.35 lb
S0109-JE08 5/16" 4.50" 9.25" 0.41" 0.5" 0.6 lb
S0109-JE10 3/8" 6.00" 11" 0.5" 0.56" 0.8 lb
S0109-JE13 1/2" 6.00" 12.5" 0.75" 0.63" 1.55 lb
S0109-JE16 5/8" 6.00" 14" 0.87" 0.75" 2.69 lb
S0109-JE20 3/4" 6.00" 15.63" 1" 1" 4 lb
S0109-JE25 1" 6.00" 19.00" 1.38" 1.25" 9.66 lb
S0109-JE25-1 1" 12.00" 25.00" 1.38" 1.25"
S0109-JE32-1 1-1/4" 12.00" 27.50" 1.71" 1.88"
