How PM&I Can Help Prevent Delays

Stainless Turnbuckle

Hook and Hook Turnbuckle

316-NM Stainless Steel

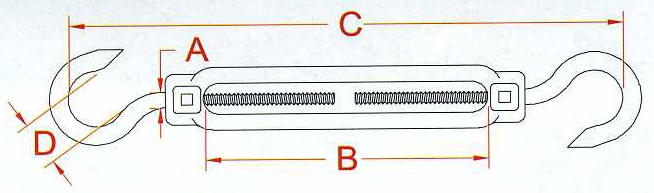

ITEM A B C D WT
S0111-HH07 1/4" 4.00" 6.87" 0.39" 0.22
S0111-HH08 5/16" 4.50" 7.75" 0.44" 0.35
S0111-HH10 3/8" 6.00" 10.37" 0.52" 0.60
S0111-HH13 1/2" 6.00" 10.50" 0.55" 1.10
S0111-HH16 5/8" 6.00" 14.25" 0.57" 1.90
S0111-HH20 3/4" 6.00" 14.25" 0.90" 2.75
