How PM&I Can Help Prevent Delays

Stainless Turnbuckle

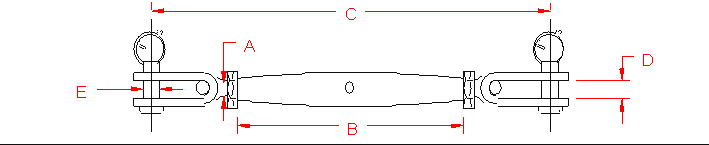

Toggle & Toggle Turnbuckle

316 Stainless Steel


Item A Size B C D E Weight
S0783-0005 3/16" 3.56" 6" 0.26" 0.19" 0.20 lb
S0783-0007 1/4" 4.2" 6.87" 0.35" 0.23" 0.40 lb
S0783-0008 5/16" 4.32" 7.63" 0.4" 0.31" 0.60 lb
S0783-0010 3/8" 4.9" 9.12" 0.56" 0.37" 1.50 lb
S0783-0012 1/2" 5.75" 10.50" 0.53" 0.47" 3.50 lb
S0783-0013 1/2" 5.87" 10.87" 0.63"   2060
S0783-0016 5/8" 7.50" 16.25" 0.80"   2800
