Chromed Bronze Turnbuckle

Jaw & Jaw Turnbuckle

Chromed Bronze

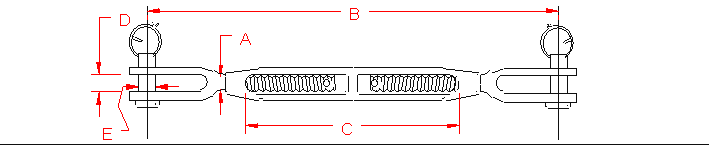

Item A Size B Adjust C D E Weight
S0787-0007 1/4" 7.25" 3.5" 0.25" 0.25" 0.3 lb
S0787-0009 5/16" 8.5" 3.8" 0.31" 0.31" 0.45 lb
S0787-0010 3/8" 8.87" 4.4" 0.38" 0.38" 0.86 lb
S0787-0013 1/2" 10.75" 4.62" 0.50" 0.50" 1.62 lb
S0787-0016 5/8" 3/16" 4.90" 0.62" 0.62" 2.95 lb
