How PM&I Can Help Prevent Delays

Stainless Turnbuckle

Turnbuckle Body

316-NM Stainless Steel

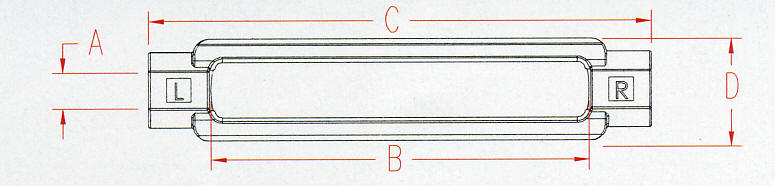

Item A Size B C D Thread Weight
S0106-BD07 1/4" 4.00" 4.75" 0.72" 1/4x20 0.15 lb
S0106-BD08 5/16" 4.50" 5.50" 0.82" 5/16x18 0.25 lb
S0106-BD10 3/8" 6.00" 7.13" 0.97" 3/8x16 0.35 lb
S0106-BD13 1/2" 6.00" 7.50" 1.16" 1/2x13 0.55 lb
S0106-BD16 5/8" 6.00" 7.81" 1.38" 5/8x11 0.9 lb
S0106-BD20 3/4" 6.00" 8.19" 1.69" 3/4x10 1.15 lb
S0106-BD25 1" 6.00" 9.00" 2.31" 1x8 2.69 lb
S0106-BD25-1 1" 12.00" 14.81" 2.31" 1x8 4.17 lb
S0106-BD32-1 1-1/4" 12.00" 15.13" 2.62" 1-1/4x7 5.9 lb
