Stainless Turnbuckle

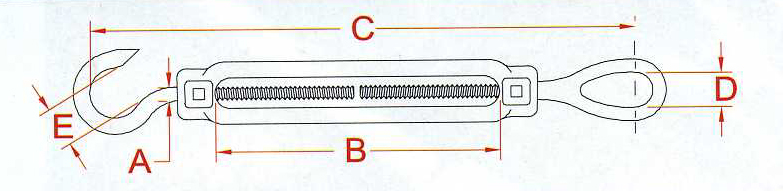

Hook & Eye Turnbuckle

316 Stainless Steel


Item A Size B Adjust C D E Weight
S0154-HE05 3/16" 2.50" 5.12" 0.38" 0.3" 0.10 lb
S0154-HE07 1/4" 3.00" 5.87" 0.44" 0.38" 0.20 lb
S0154-HE08 5/16" 4.00" 7.12" 0.5" 0.44" 0.35 lb
S0154-HE10 3/8" 6.00" 10.25" 0.65" 0.50" 0.75 lb
S0154-HE13 1/2" 6.00" 11.62" 0.75" 0.63" 1.40 lb
S0154-HE16 5/8" 8.00" 14.50" 0.87" 0.63" 2.75 lb
S0154-HE20 3/4" 10.00" 17.00" 1.1" 0.85" 5.40 lb
