PVL Series Lever Chain Hoists

0.75 to 9 Metric Tons Capacity

1.5 Meter Standard Lift

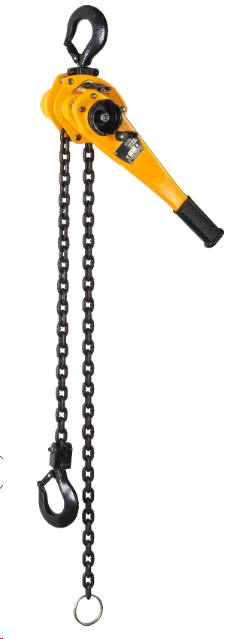

Lever Chain Hoist PVL Series

Lever Chain Hoist PVL Series

0.75 to 9 Metric Ton

1.5 Meter Standard Lift

1, 2 or 3 Chain Fall


Make by Standard: EN13157


● Compact, light and durable.
● Double-pawl brake system designed for safely and reliability.
● Heat treated steel plates, gears and shafts for enhanced strength.
Forged upper and lower hooks with forged steel safety latches, high tensile alloy steel chain.
● The lifting chain can be freely pulled and operated by a special separating block design.
● Weston style automatic load brake with double pawl load reduction.
● 360° rotating handle for confined spaces.
● When in Neutral position the bottom hook can be freely adjusted when unloaded.
● Safety factor: 4 to 1
● Fatigue tested at 1.5 times of working load limit to 2000 cycles.

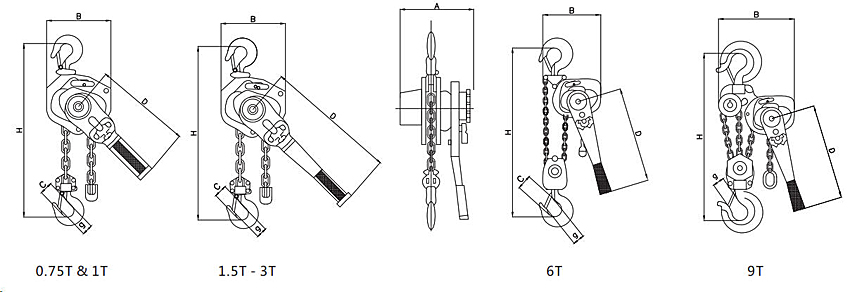

PVL Series Lever Chain Hoists

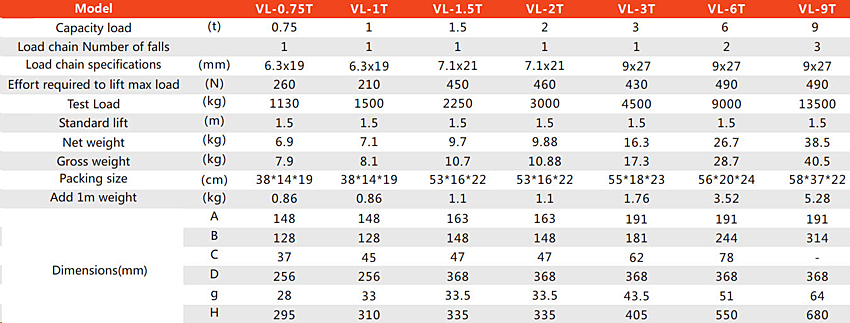

PVL Series Lever Chain Hoists
