PVA-B Series Lever Chain Hoists

0.5 to 9 Metric Tons Capacity

1.5 Meter Standard Lift with 1 Chain Fall

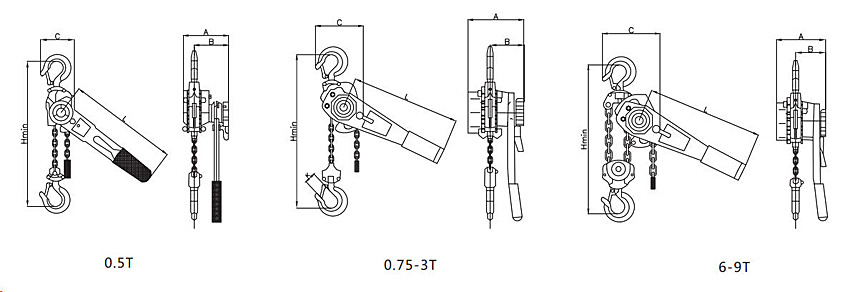

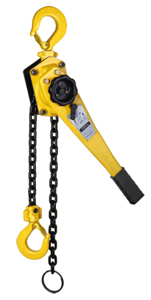

Lever Chain Hoist PVA-B Series

Lever Chain Hoist PVA-B Series

0.5 to 9 Metric Ton

1.5 Meter Standard Lift

1, 2 or 3 Chain Fall


Made to the Standard: EN13157

Standard Features:
● The design is in accordance with EN13157 standard
● High strength steel frame and gear case build to be durable for rugged needs of construction and rigging.
● 360 degree handle rotation with short stroke to ratchet loads.
● Equipped with wide throat top and bottom drop forged hooks that are designed to bend
slowly to warn of overloads.
● Load chain is alloy steel grade 80 according to EN818-7 standard.

Optional Features:
● Caged ball bearing on load sheaves.
● Cast safety latches.
● Thrust bearings in bottom hook assembly.
● Special surface treatments.


PVA-B Series Lever Chain Hoists


PVA-B Series Lever Chain Hoists
