PDC Series Lever Chain Hoists

0.25 to 6 Metric Tons Capacity

1.5 Meter Standard Lift

Lever Chain Hoist PDC Series

0.25 to 6 Metric Ton

1.5 Meter Standard Lift

1, 2 or 3 Chain Fall


Made to the Standard: EN13157

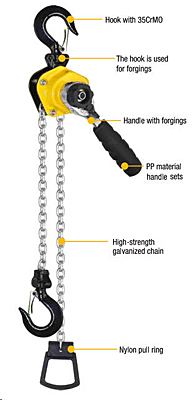

● The suspension device and load hook are made of anti-aging, high-strength alloy steel.

    In case of overload, they will deform first and not break suddenly.

● The hook includes a safety lock and has free rotation 360°.

● Ergonomic handle makes the hoist easy to operate.

● Closed design protects the internal parts from debris.

● All parts of the disc load brake are made of high quality materials and are corrosion resistant.


Environmental Conditions:

● Operating temperature range: -40°C~+60°C

● Environment range: Please use below 100% Relative Humidity

● Do not use in water.

● Overloading is strictly prohibited.


PDC Series Lever Chain Hoists


PDC Series Lever Chain Hoists
