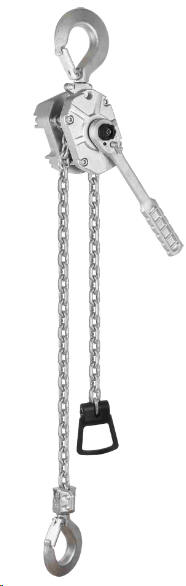

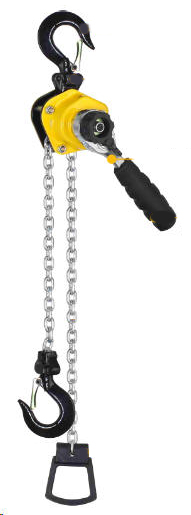

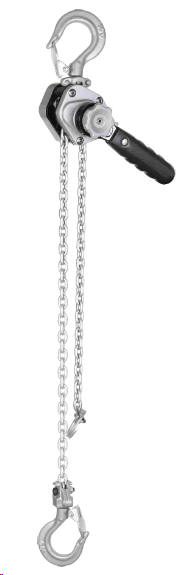

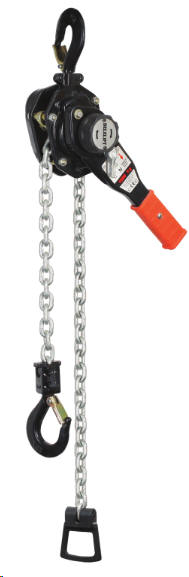

Lever Chain Hoists

lever chain hoist

3/4 to 6 Tons Capacity



Features:



Standard lift is 5 ft (1.5 m) with additional lifts available



High strength, grade 100 alloy steel load chain with galvanized finish for corrosion resistance



Rugged steel construction for durability



Compact and light-weight design make this hoist extremely versatile



Operates in tight spaces with 360° handle rotation and a 15° handle recovery



Hooks are alloy steel, heat treated and equipped with hook latches and inspection points



Open chain path for simple inspection and cleaning



Dual pawl Weston-style brake with two friction discs provides four braking surfaces



Machined chain sprocket provides smoother, more efficient operation



Meets or exceeds international standards, including ASME B30.21



MODEL

CAPACITY
TONCapactiy [KG]

FALLS

NOMINAL LEVER EFFORT *
LBS. [N]

HANDLE LENGTH
INCH [MM]

WEIGHT **
LBS. [KG]

RLP-750

3/4 [750]

1

31.5 [140]

11.0 [280]

16.5 [7.5]

RLP-1000

1 [1000]

1

42 [187]

11.0 [280]

16.5 [7.5]

RLP-1500

1.5 [1500]

1

49.5 [220]

16.14 [410]

26 [11.8]

RLP-3000

3 [3000]

1

72 [320]

16.14 [410]

50 [22.5]

RLP-6000

6 [6000]

2

77 [340]

16.14 [410]

69 [31]
