PDL Series Aluminum Lever Chain Hoists

0.25 to 9 Metric Tons Capacity

1.5 Meter Standard Lift

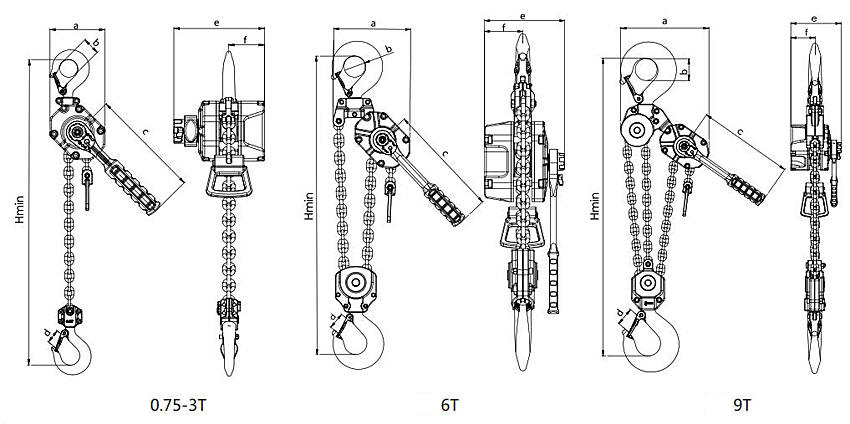

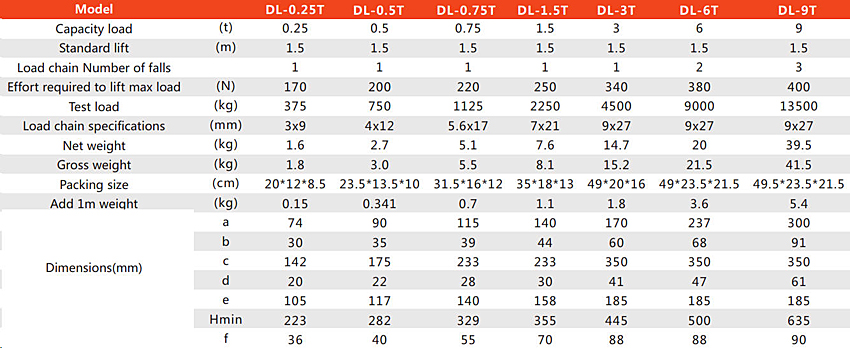

Aluminum Lever Chain Hoist PDL Series

Aluminum Lever Chain Hoist PDL Series

0.25 to 9 Metric Ton

1.5 Meter Standard Lift (Customization Possible)

1, 2 or 3 Chain Fall


Made to the Standard: EN13157


This aluminum alloy lever hoist is our smallest and lightest lever hoist.



● Load hooks made of anti-aging, high-strength alloy steel.

 ● In case of overload the hoist case will first be deformed without sudden breakage.

● Hook includes a safety lock and free rotation of 360°.

● Easy to operate handle.

● Closed body design to protect the internal parts from debris.

● All components of the disc-type load brakes are made of high-quality anti-corrosion materials.

● This lever hoist is made of aluminum alloy material and will not rust.


Environmental conditions:

● Operating temperature range: -40  to + 60 Degrees C.

● Can not be used in water.

● Never overload any lifting device.

PDL Series Aluminum Lever Chain Hoists
PDL Series Aluminum Lever Chain Hoists
