3490A Aircraft or Cargo Securing Point Concrete Installation

Stock Items Typically Ship in 1 to 2 Business Days

Visit PM&I FULL Equipment Catalog

Contact Us At info@pacificmarine.net For:

Large QuantityExpedited Shipments
CustomizationResale / Tax Free Sales
International ShippingOther Requirements

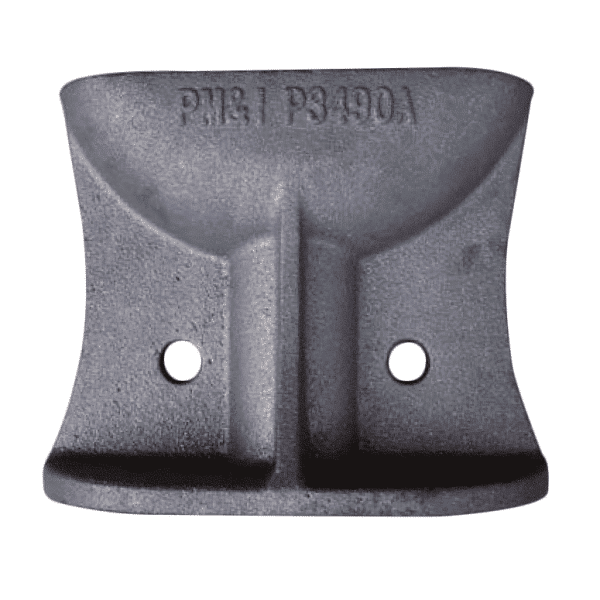

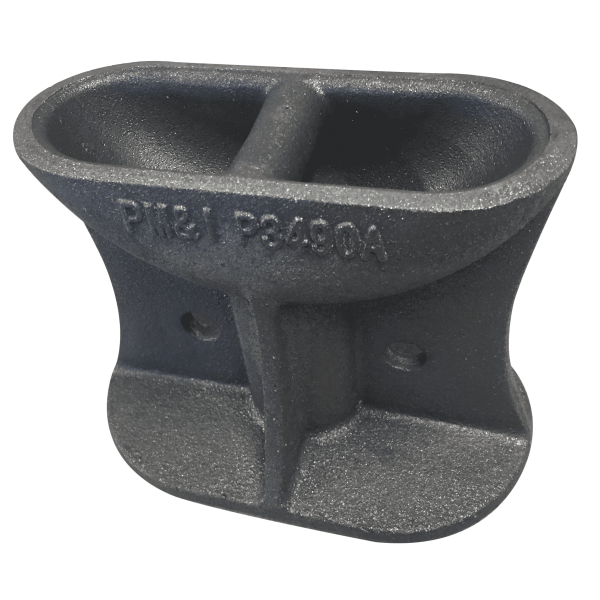

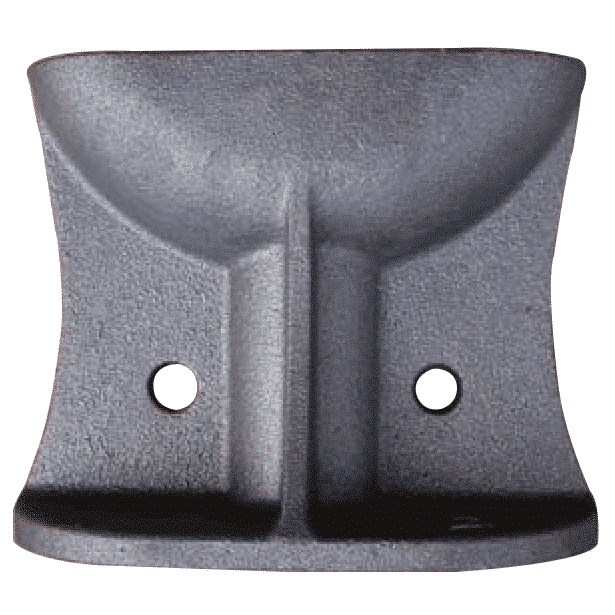

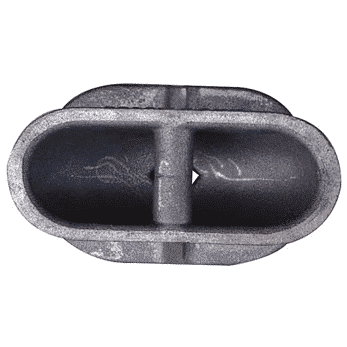

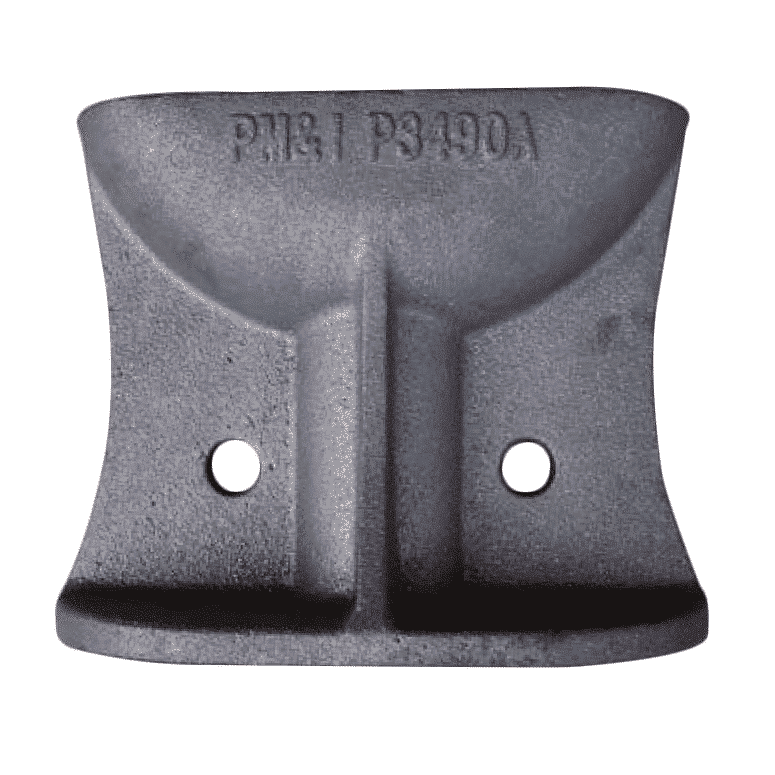

Aircraft Tie Down Anchor for Concrete Cast Iron for Flush Installation: P3490A

$67.15

1861 in stock

See Our Full Tie Down Points Web Catalog Here

P3490A - Aircraft Tie Down

For Concrete Installation

Ductile Cast Iron: ASTM A-536

13 lbs. each

23,300 lb. capacity estimate**

Finish: no paint

** Actual capacity depends on many local installation factors:
- Concrete strength
- Rebar strength (if used) and design
- Angle of pull from the fitting to the load

Dims:
Side Rebar Holes: 15.9mm = 5/8 inch diameter

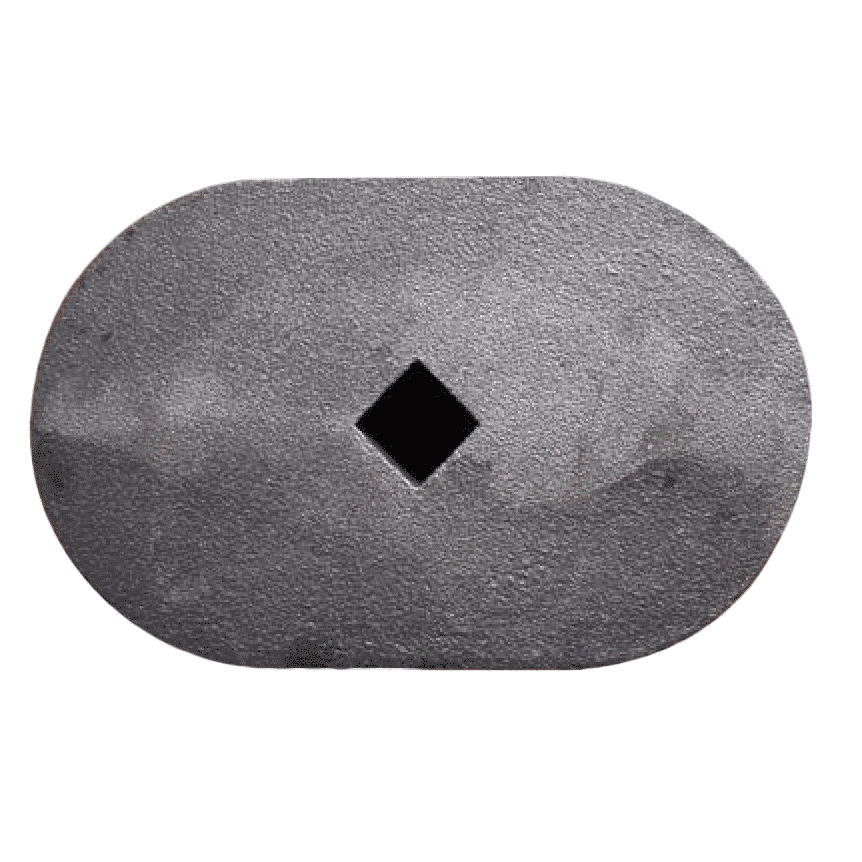

Bottom Stake Hole: 22mm = 7/8 inch Square

California Stock

Additional information

Weight12 lbs
Dimensions7.75 × 6 × 6 in
