Aircraft Tie Down Anchor for Concrete Cast Iron for Flush Installation: P3490
$55.24
773 in stock

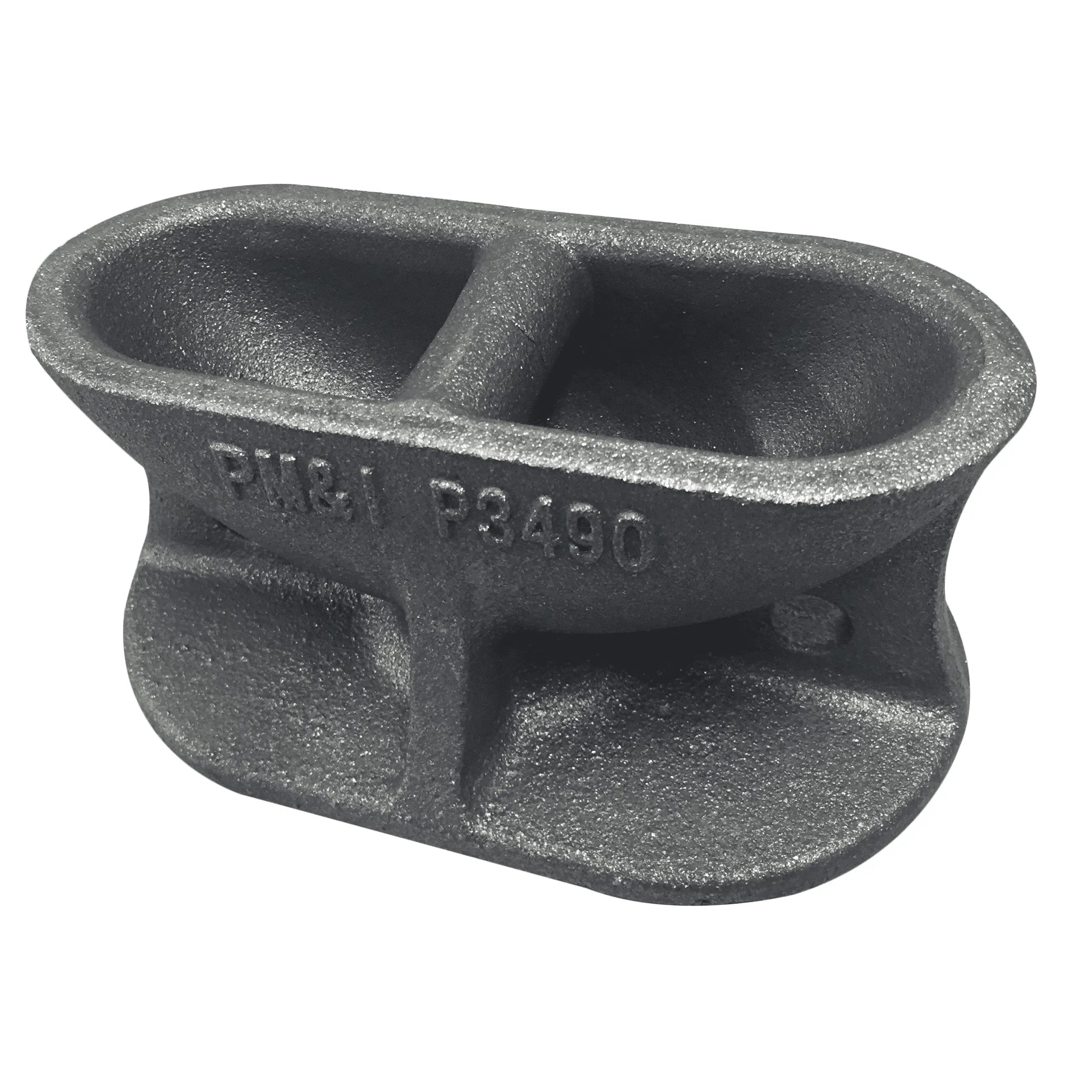

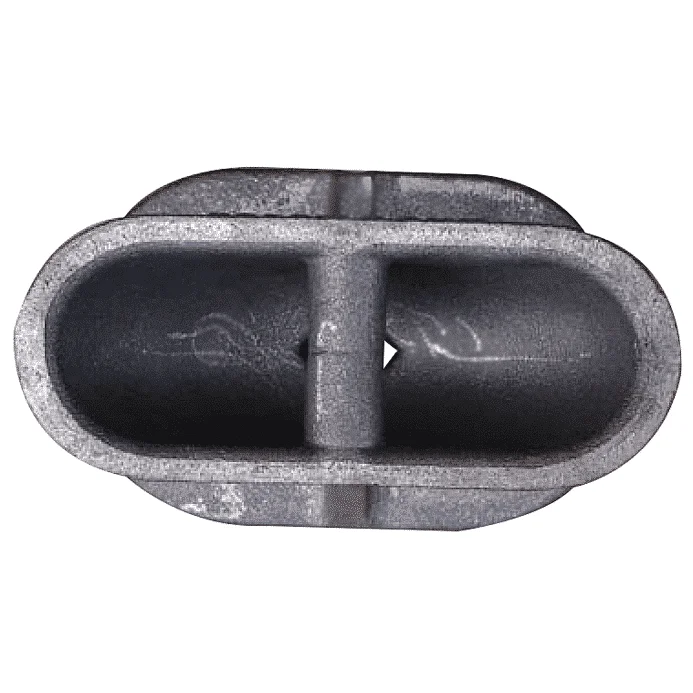

P3490 - Aircraft Tie Down
Concrete Installation with Optional Rebar
Ductile Cast Iron: ASTM A-536
10 lbs. each
9,000 lb. capacity estimate**
Finish: no paint
** Actual capacity depends on many local installation factors:
- Concrete strength
- Rebar strength (if used) and design
- Angle of pull from the fitting to the load
Dims:

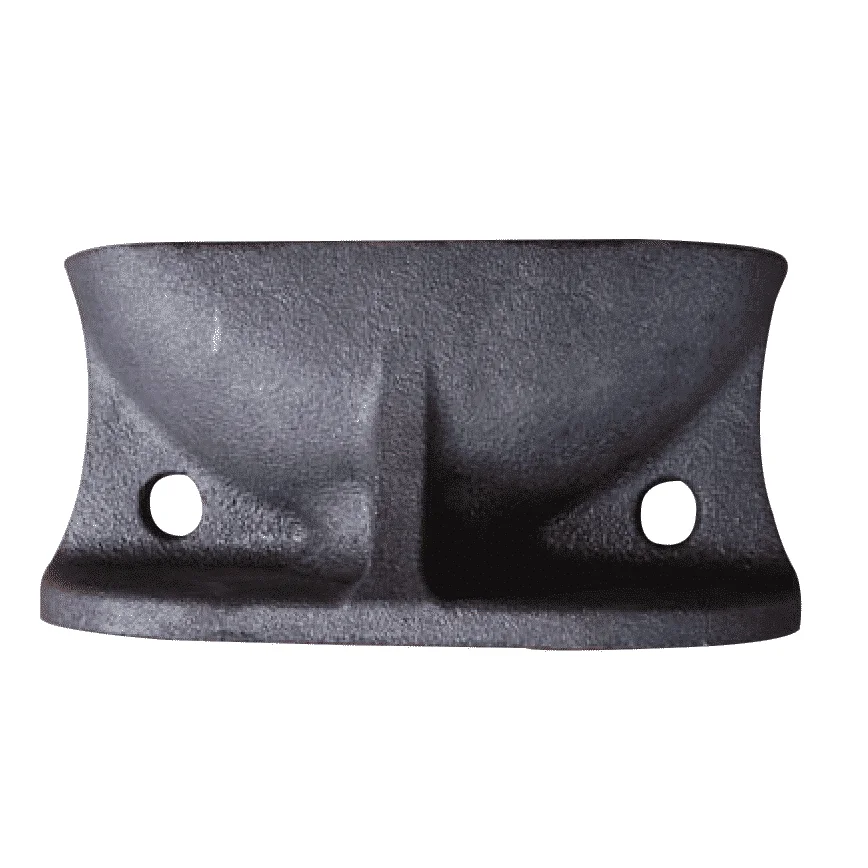

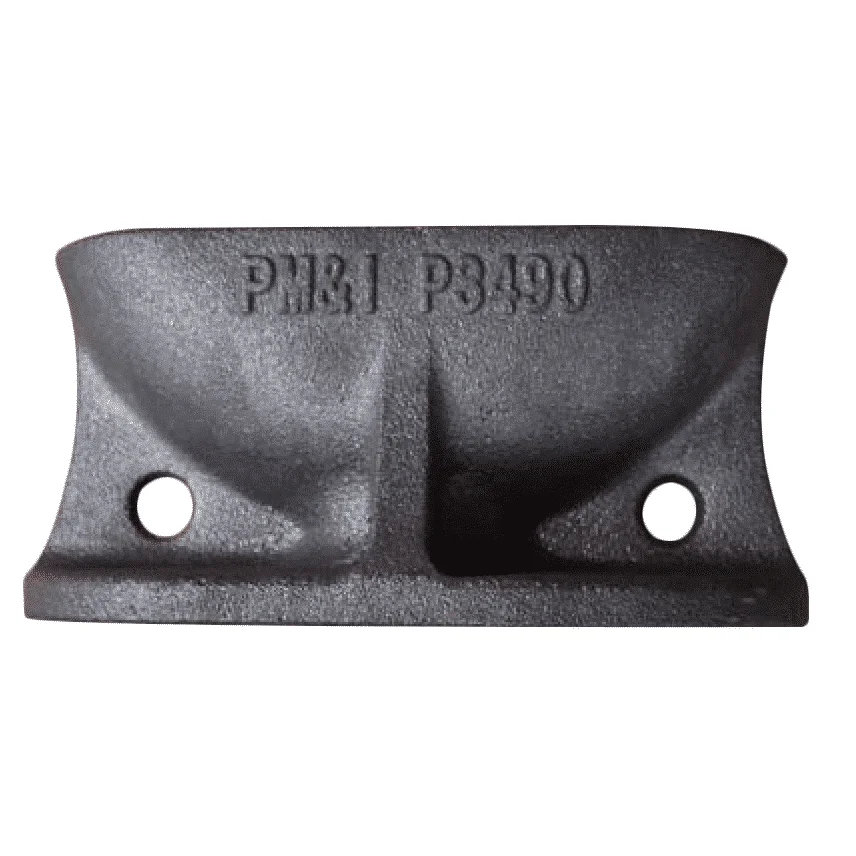

Side Rebar Holes: 15.9mm = 5/8 inch diameter

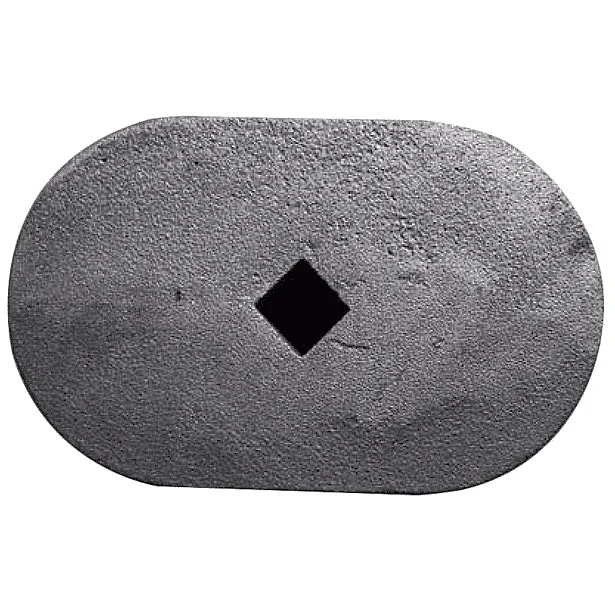

Bottom Stake Hole: 22mm = 7/8 inch Square
California Stock
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 4.8 × 7.8 × 3.6 in |
