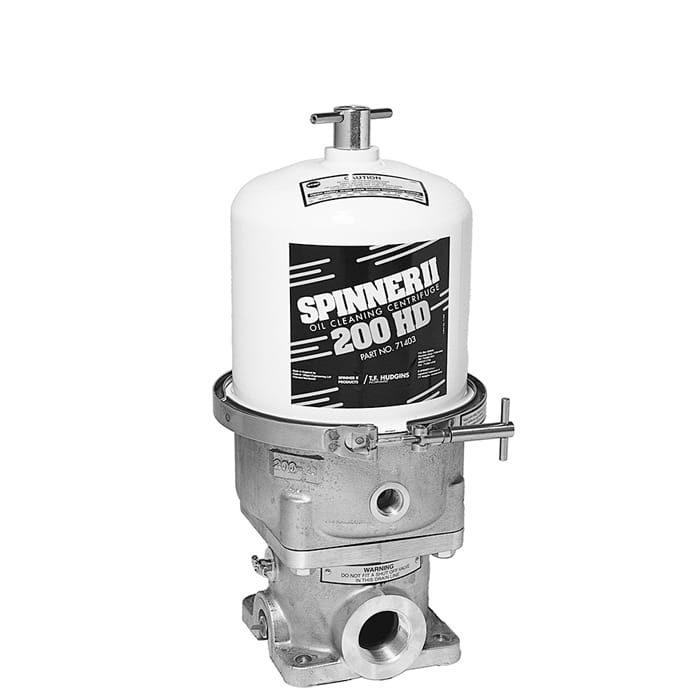

Model 200 HD
Spinner 2 Oil Filter
4 GPM Flow Rate
With or Without LCB

Extends Oil Change Interval - Extends Engine Life
Up to 4 GPM or 15.1 Liters Per Minute
Re-Useable Rotor
Paper Insert Available to Assist in Cleaning
With or Without LCB*
Up to 2,000cc of Contaminants

*The LCB is the Level Control Base and can be added from the Product Options tab.
The LCB allows for parallel or slightly uphill oil return to the sump.
It also allows for a much smaller return line.
The LCB requires a compressed air sources for operation.

Product should be sized to circulate oil sump 4 to 5 times per hour.

Spinner Model 200 HD with capacity of 4 GPM is for Oil Sump size 48 to 60 Gallons.

3 Connections To Make:
Oil Inlet
Oil Outlet (Larger if no LCB for Gravity Drain)
Air Inlet (Only if LCB used)

Centrifugal Oil Purification System - Removes Particles Down to .1 Micron
Extends Oil Change Interval - Extends Engine Life

Operates on engine oil pressure

For: Engine lubricants, gear oils, machining fluids, hydraulic oils, quench oils

Engine mounted or side mounted
Operates on oil pressure only
Remove particles down to 1/10 of a micron
Remove carbon and soot
Use in addition to your full flow filter system
Stand alone pump assisted units available

Protects Machinery:
Reduces wear up to 50%
Increases engine / component life
Helps reduce frequency of maintenance and repair

Extends Operating Intervals
Keeps fluids and additives effective longer
Prolongs full flow filter life
Centrifuge requires minimal service

Eliminates Waste
Permanent, cleanable and reusable
No media or filter element to replace
Protects the environment by reducing disposable waste
