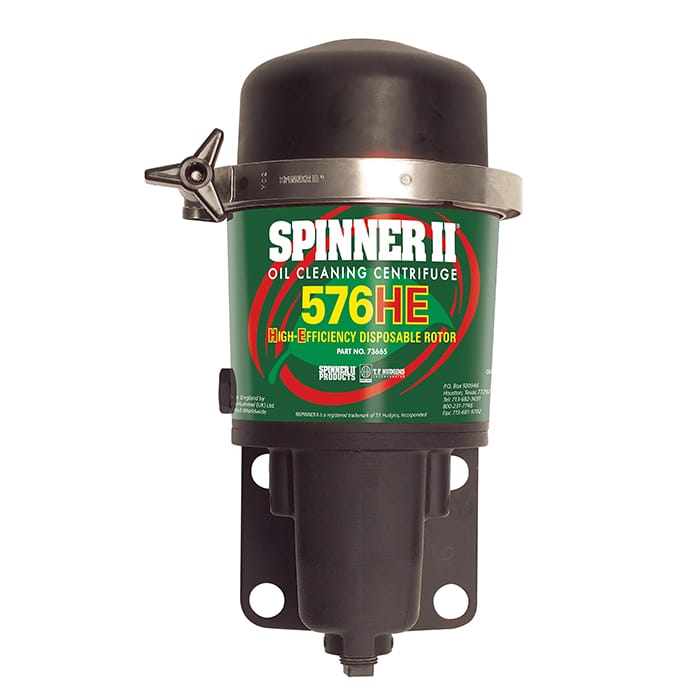

Model 576HE
Spinner 2 Oil Filter
2 GPM Flow Rate

Extends Oil Change Interval - Extends Engine Life
Up to 2 GPM or 7.6 Liters Per Minute
Disposable Rotor (No Bowl Cleaning)
No Paper Insert Required
Up to 500cc of Contaminants
LCB (Level Control Base) Included (Air Supply Required)
LCB Allows for Faster Oil Return with Smaller Return Line

Product should be sized to circulate oil sump 4 to 5 times per hour.

Spinner Model 576HE with capacity of 2 GPM is for Oil Sump size 24 to 30 Gallons.

3 Connections To Make:
Oil Inlet - 1/2 NPT Female
Oil Outlet - 1/2 NPT Female
Air Inlet - 1/4 NPT Female

Centrifugal Oil Purification System - Removes Particles Down to .1 Micron
Extends Oil Change Interval - Extends Engine Life

Operates on engine oil pressure

For: Engine lubricants, gear oils, machining fluids, hydraulic oils, quench oils

Engine mounted or side mounted
Operates on oil pressure only
Remove particles down to 1/10 of a micron
Remove carbon and soot
Use in addition to your full flow filter system
Stand alone pump assisted units available

Protects Machinery:
Reduces wear up to 50%
Increases engine / component life
Helps reduce frequency of maintenance and repair

Extends Operating Intervals
Keeps fluids and additives effective longer
Prolongs full flow filter life
Centrifuge requires minimal service

Eliminates Waste
Permanent, cleanable and reusable
No media or filter element to replace
Protects the environment by reducing disposable waste
