Breech Base Container Twistlock
ISO Ocean Shipping Container
$54.04
150 in stock

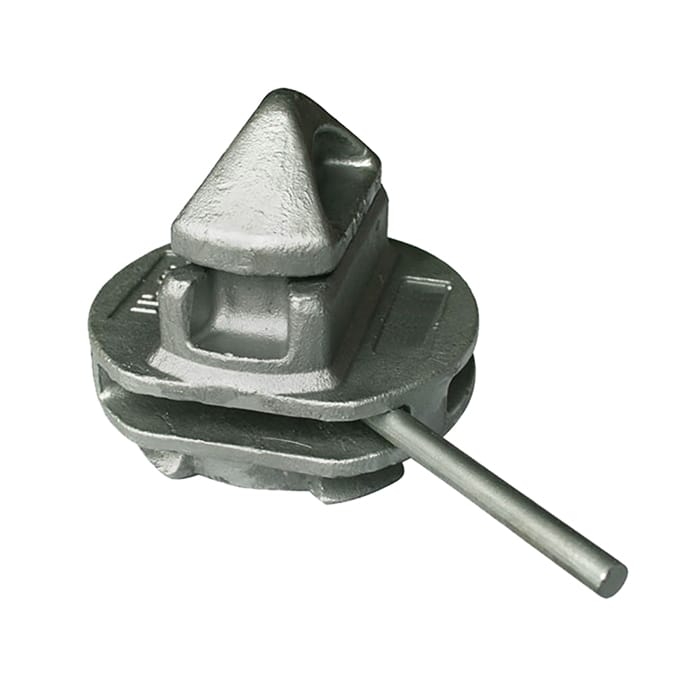

Breech Base Container Twistlock - ISO Ocean Shipping Container - Part: BD-H1
The Breech Base Twistlock BD-H1 is designed to lock the bottom of a container. This twistlock is similar to our Dovetail Twistlock BD-E1, but has a different bottom. The BD-H1 can only be placed from above and can be used in four directions. This round bottom twistlock can only be used in combination with the Breech Base Container Foundation AH-A1. The BD-H1 Breech Base Twistlock is available in a standard left-locking configuration. Right-locking Breech Base Twistlocks can be quoted as a special order.

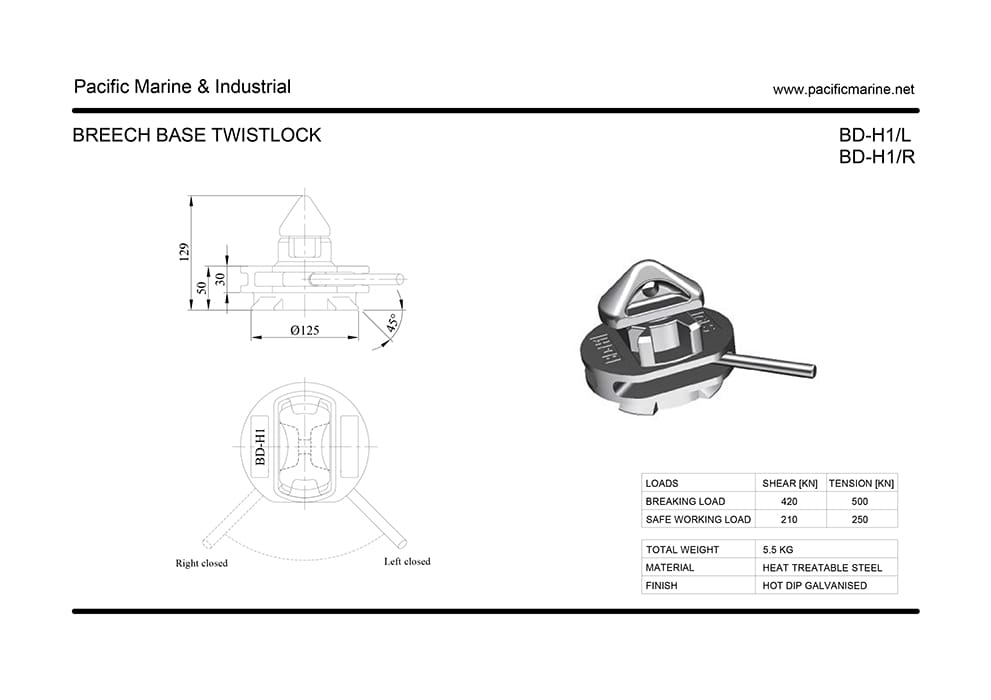

Each product is made of high-quality galvanized steel and is therefore suitable for years of use. The exact dimensions of the Breech Base Twistlock BD-H1 can be found on our technical drawing.
Type and Test Class Approved on Request
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 5.15 × 5.15 × 5.15 in |
| Warehouse | California Stock |
