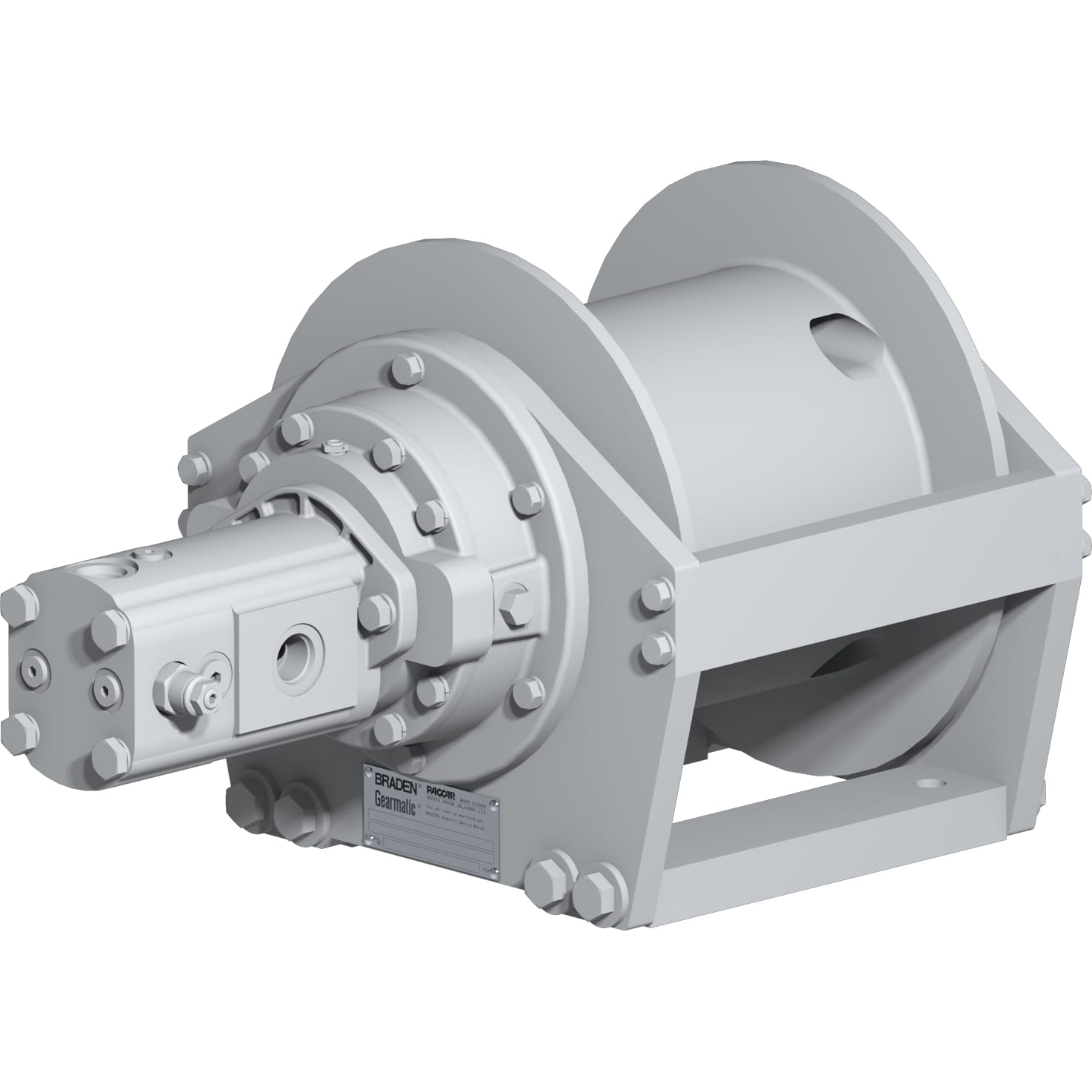

Hydraulic Winch-Hoist
7000 lb. Max Line Pull
Model BG6B-07149-01H
PACCAR Braden
$5,156.14
In stock
Hydraulic Winch or Hoist
7000 lb. Max Line Pull
PACCAR Braden
Recommended Hydraulic Supply*
Hydraulic Pressure: 2,429 PSI
Hydraulic Flow Rate: 20 GPM
* Less pressure and/or flow can be used with reduced performance.
Rope Diameter: 7/16 Inch**
** Other rope diameters can be used with altered performance
View Our Inventory of Hydraulic Power Units
If you need to alter the Hydraulic Pressure or Flow or the Wire Size contact info@pacificmarine.net for performance chart.

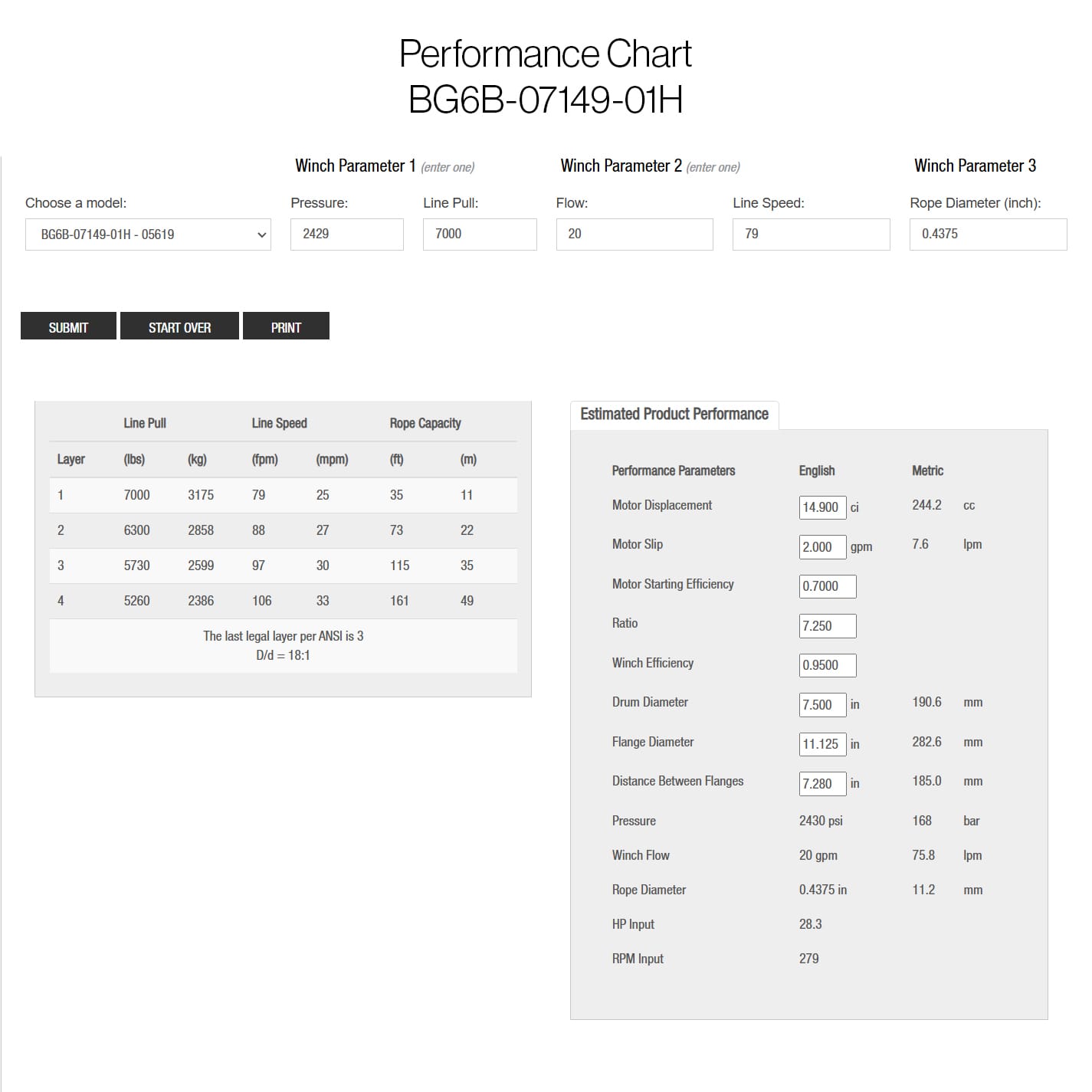

Performance Chart:
Layer 1: 7,000 lbs. at 79 ft./min
Layer 2: 6,300 lbs. at 88 ft./min
Layer 3: 5,730 lbs. at 97 ft./min
Layer 4: 5,260 lbs. at 106 ft./min
*Last legal layer per ANSI is Layer 3
*Specifications are representative of common configuration.
- Cable wedge anchor system
- Cast iron ductile base
- Counterbalance valve and multi-disc static brake for dynamic braking enables smooth operation and safe load handling
- Rugged and compact design
- Sealed, high-efficiency planetary reduction gearing for continuous-duty performance
- Multi-disc Brake - Spring applied and hydraulically released
- Anti-friction bearings for maximum efficiency
Other models available, subject to lead time.
Email us to inquire: info@pacificmarine.net
The BG Series planetary hoist / winch is a high performance product designed to provide many years of service.
The BG series covers the smaller range of hydraulic hoists (can also be used as a hydraulic winch).
There are many BG models available from 3,000 to 8,000 lbs. rated capacity.
Contact info@pacificmarine.net for help in sizing a unit.
Additional information
| Weight | 210 lbs |
|---|---|
| Dimensions | 40 × 30 × 28 in |
