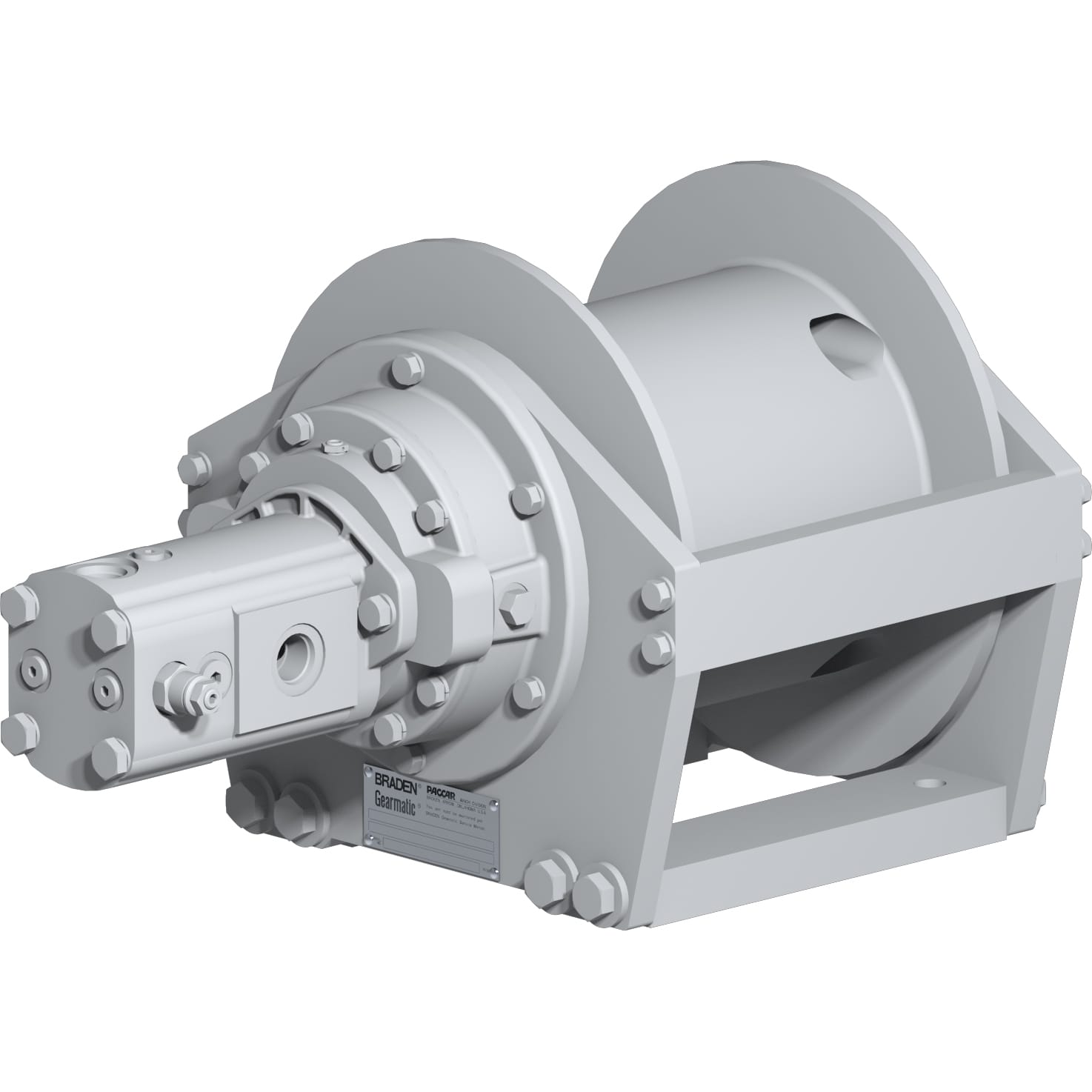

Hydraulic Winch-Hoist
6000 lb. Max Line Pull
Model BG6B-29029-02-1
PACCAR Braden

Hydraulic Winch or Hoist
6000 lb. Max Line Pull
PACCAR Braden

Recommended Hydraulic Supply*
Hydraulic Pressure: 2,701 PSI
Hydraulic Flow Rate: 21 GPM
* Less pressure and/or flow can be used with reduced performance.

Rope Diameter: 7/16 Inch**
** Other rope diameters can be used with altered performance

Includes "Man Rider" Testing and Inspection Per API 2C for Offshore Cranes. Denoted by the -1 At End of Model Number.

If you need to alter the Hydraulic Pressure or Flow or the Wire Size contact info@pacificmarine.net for performance chart.

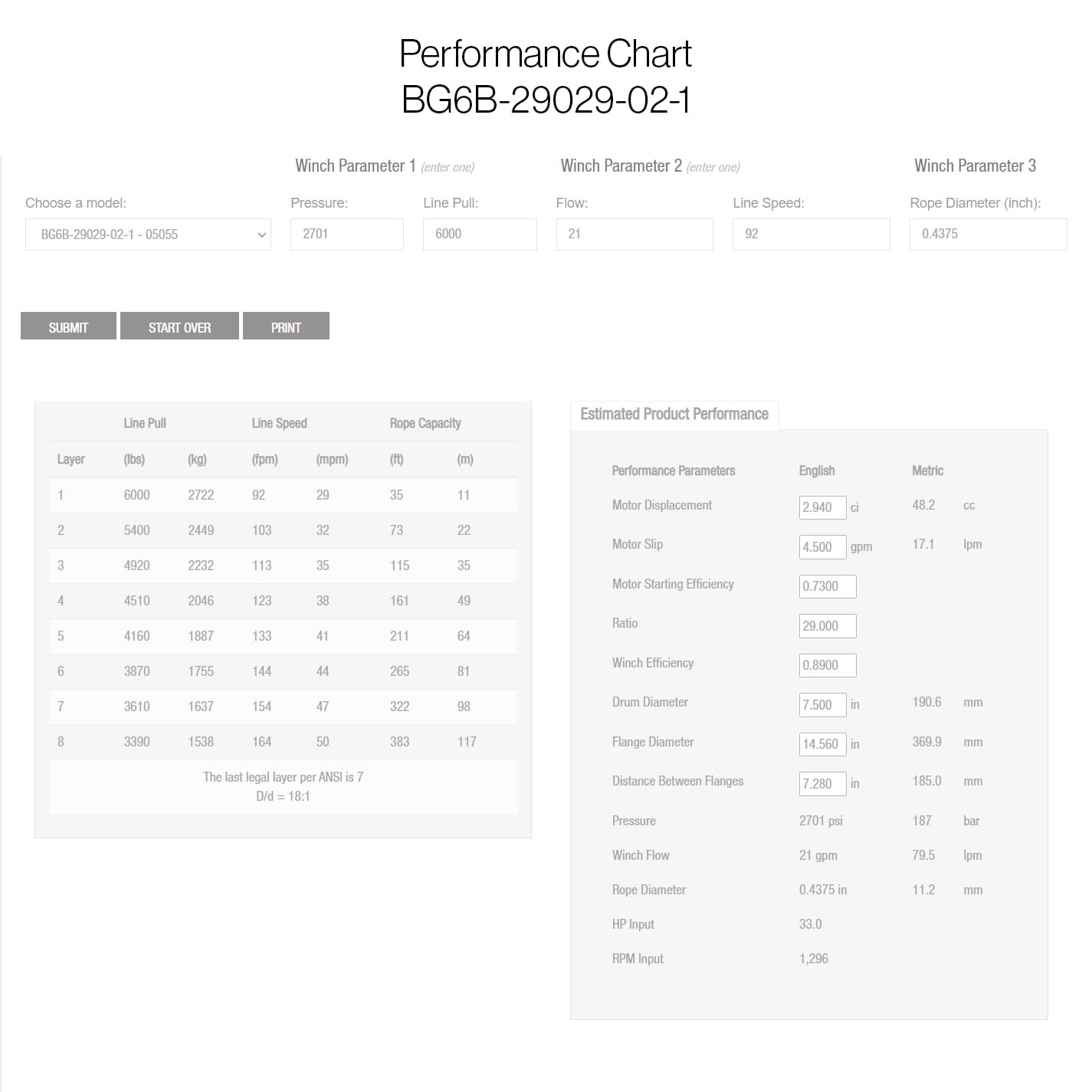

Performance Chart:

Layer 1: 6,000 lbs. at 92 ft./min
Layer 2: 5,400 lbs. at 103 ft./min
Layer 3: 4,920 lbs. at 113 ft./min
Layer 4: 4,510 lbs. at 123 ft./min
Layer 5: 4,160 lbs. at 133 ft./min
Layer 6: 3,870 lbs. at 144 ft./min
Layer 7: 3,610 lbs. at 154 ft./min
Layer 8: 3,390 lbs. at 164 ft./min

*Last legal layer per ANSI is Layer 7
*Specifications are representative of common configuration.

• Cable wedge anchor system
• Cast iron ductile base
• Counterbalance valve and multi-disc static brake for dynamic braking enables smooth operation and safe load handling
• Rugged and compact design
• Sealed, high-efficiency planetary reduction gearing for continuous-duty performance
• Multi-disc Brake - Spring applied and hydraulically released
• Anti-friction bearings for maximum efficiency

Other models available, subject to lead time.

Email us to inquire: info@pacificmarine.net

The BG Series planetary hoist / winch is a high performance product designed to provide many years of service.
The BG series covers the smaller range of hydraulic hoists (can also be used as a hydraulic winch).

There are many BG models available from 3,000 to 8,000 lbs. rated capacity.

Contact info@pacificmarine.net for help in sizing a unit.
