Hydraulic Winch-Hoist
12000 lb. Max Line Pull
Model PD12C-SPL-59039-02-1
PACCAR Braden

Hydraulic Winch or Hoist
12000 lb. Max Line Pull
PACCAR Braden

Recommended Hydraulic Supply*
Hydraulic Pressure: 2,406 PSI
Hydraulic Flow Rate: 65 GPM
* Less pressure and/or flow can be used with reduced performance.

Rope Diameter: 9/16 Inch (14.3mm)**
** Other rope diameters can be used with altered performance

View Our Inventory of Hydraulic Power Units

Includes "Man Rider" Testing and Inspection Per API 2C for Offshore Cranes. Denoted by the -1 At End of Model Number.

If you need to alter the Hydraulic Pressure or Flow or the Wire Size contact info@pacificmarine.net for performance chart.

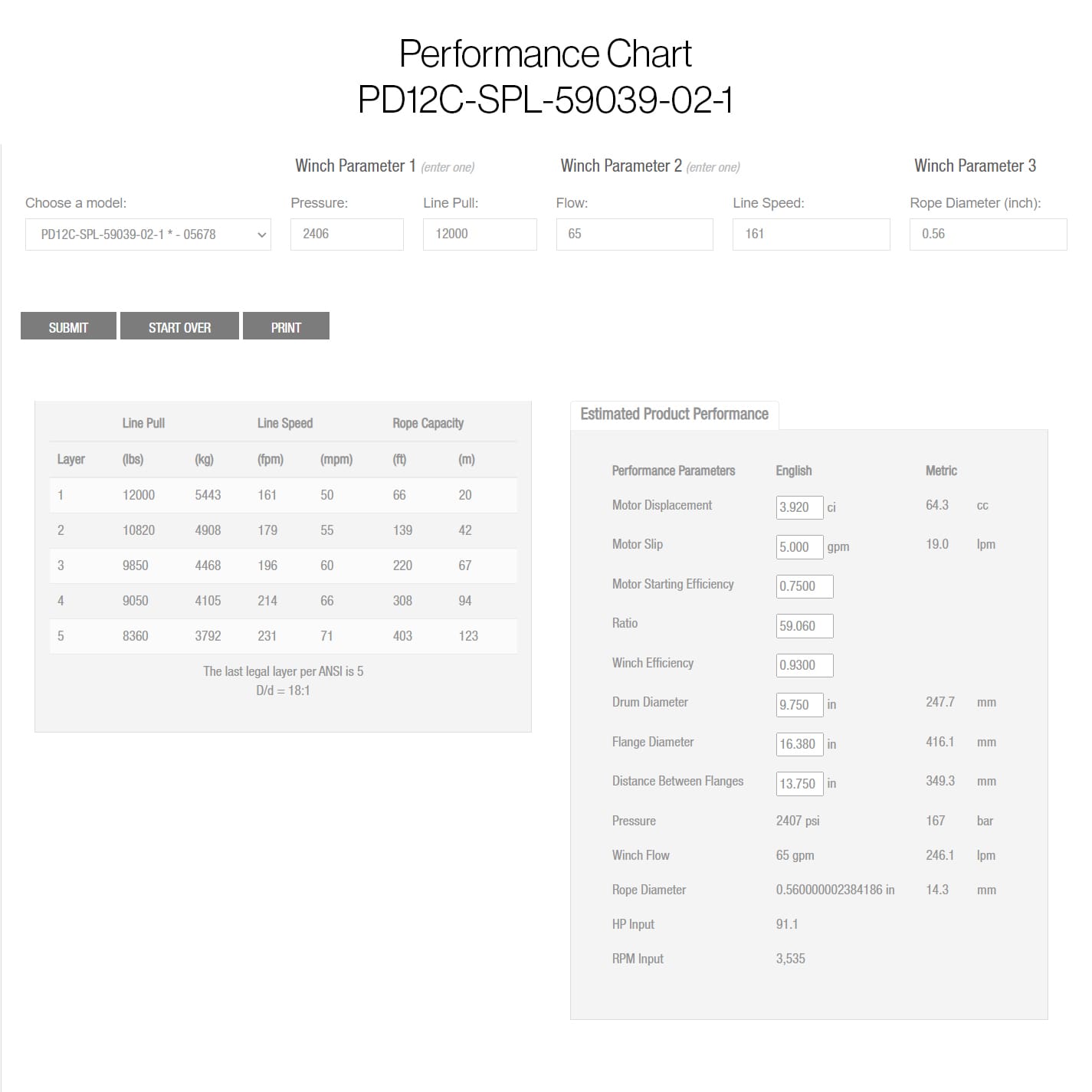

Performance Chart:
Layer 1: 12,000 lbs. at 161 ft./min
Layer 2: 10,820 lbs. at 179 ft./min
Layer 3: 9,850 lbs. at 196 ft./min
Layer 4: 9,050 lbs. at 214 ft./min
Layer 5: 8,360 lbs. at 231 ft./min

*Last legal layer per ANSI is Layer 5
*Specifications are representative of common configuration.

• Multi-disc spring applied, hydraulically released brake to hold the load even if a hydraulic line brakes.
• Anti-friction bearings used throughout to maximize efficiency.
• Brake valve for smooth performance.
• Full load wire rope anchor.
• High-efficiency motor.
• Extra brake capacity retains 3:1 safety factor even with system backpressure of 150 psi.

Other models available, subject to lead time.

Email us to inquire: info@pacificmarine.net
