Steel Marine Mooring Cleat
24 Inches Long
Bolt Down
Rated for Load Capacity
PC2-24
$393.00
14 in stock

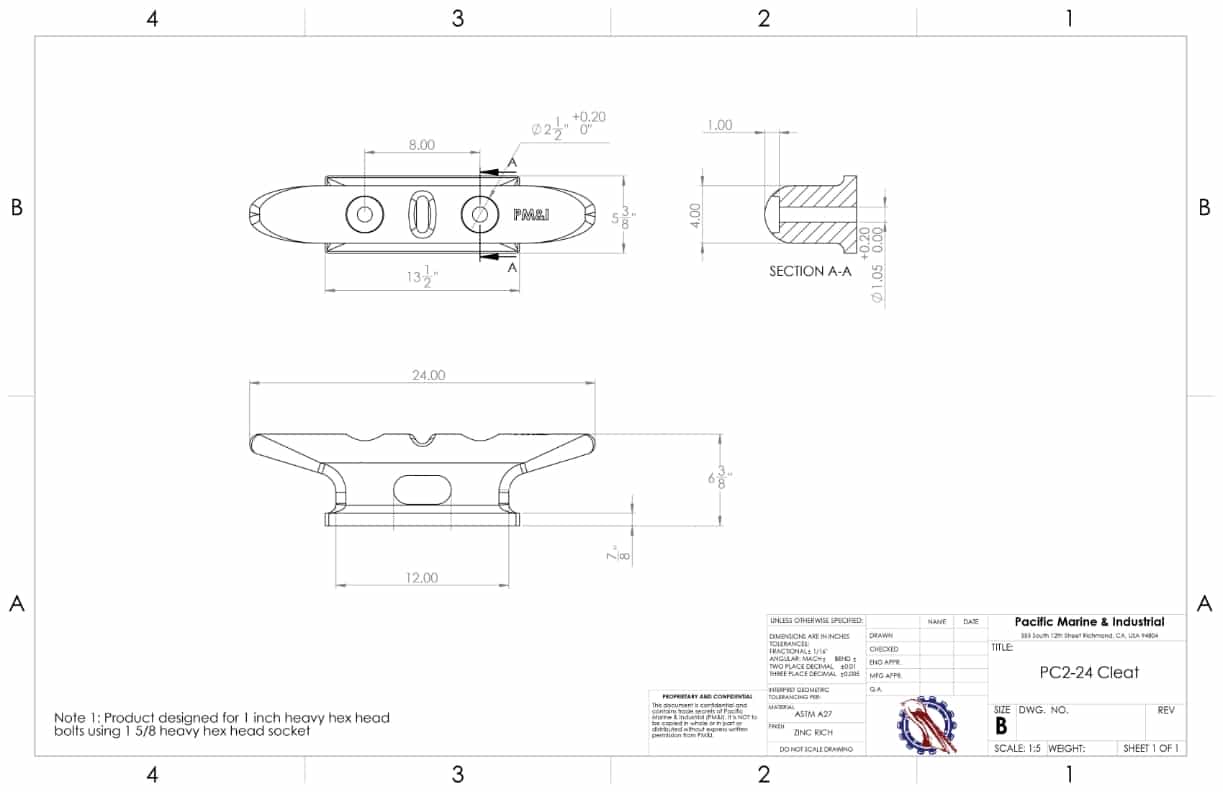

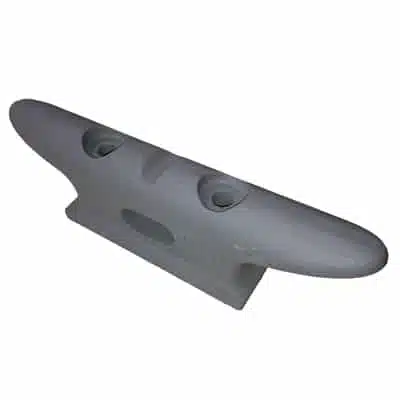

24 Inch 2 Bolt Steel Marine Mooring Cleat
19 to 49.5 Metric Ton Breaking Load Depending on Bolts Used
2 Bolt Steel Cleat with Zinc Rich Primer
Designed for 1 Inch Diameter Heavy Hex Head Bolts and Heavy Hex Head Socket
| 24 Inch Cleat: | Breaking Load** | Breaking Load** |
| Bolt | Pounds (Shear) | Metric Tons (Shear) |
| Grade 8: 1-8 Coarse Bolt | 109,080 lbs. | 49.58 mt |
| Grade 5: 1-8 Coarse Bolt | 87,264 lbs. | 39.66 mt |
| Grade 1: 1-8 Coarse Bolt | 43,632 lbs. | 19.83 mt |
** Theoretical Breaking Load
See PM&I's Complete Bollard and Cleat Catalog Here
We Carry Up to 300 Ton Bollards and 57 Inch Cleats
Additional information
| Weight | 141 lbs |
|---|---|
| Dimensions | 24 × 6 × 7 in |
