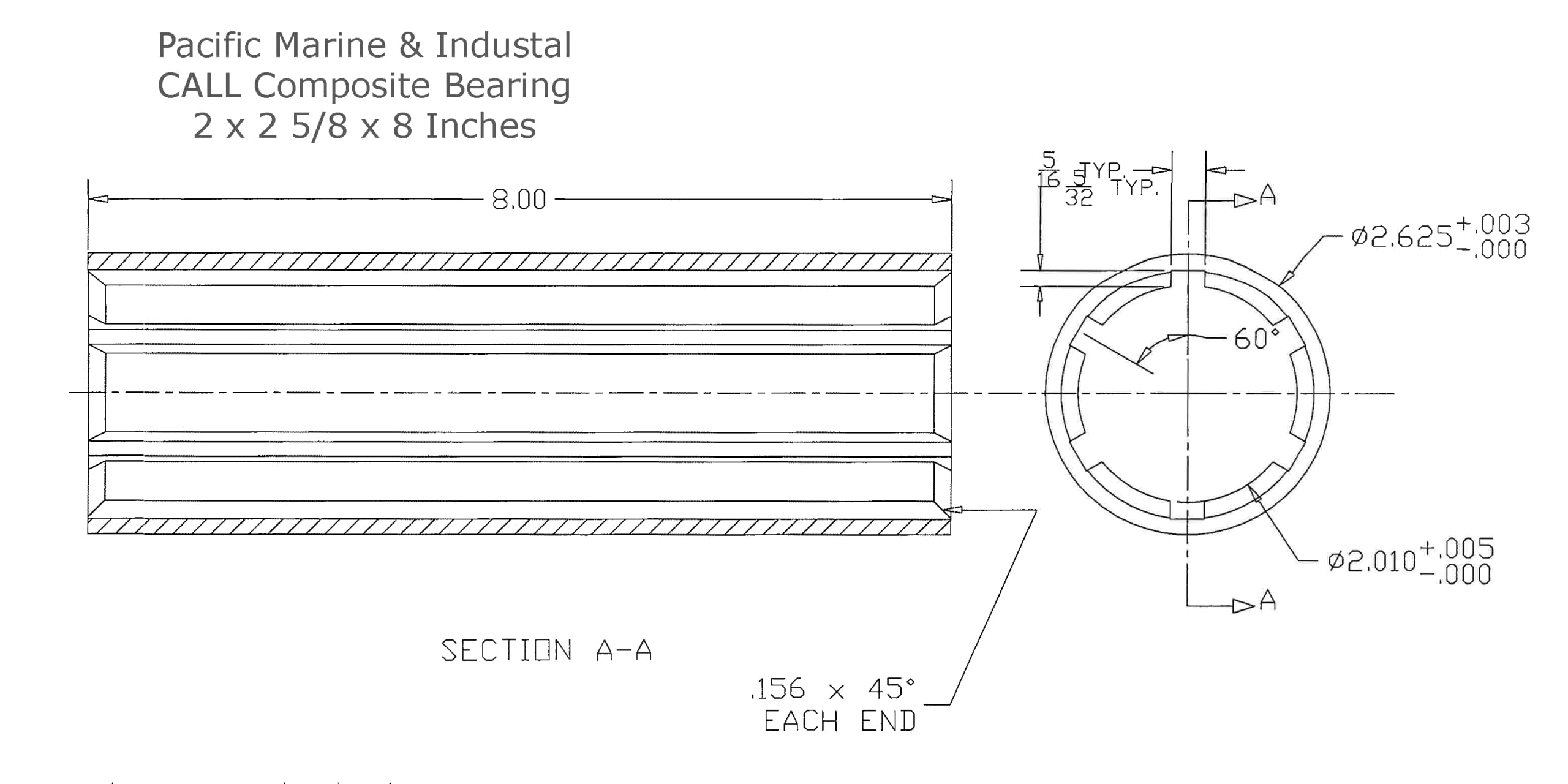

Composite Cutless Shaft Bearing
2” ID x 2-5/8” OD x 8” Length
CALL-Composite

Composite Bearing Code Name: CALL-Composite

Shaft Size: 2 Inches

Housing Size: 2-5/8 Inches

Length: 8 Inches

Tolerance: Marine

With Lubrication Grooves for Water or Other Liquid

ADVANTAGES:
- Longer lasting
- Much quieter than other bearings types (fishing)
- Made with only 1 material type throughout
- No risk of delamination between rubber and brass
- Not made with glue that contain PFAS chemicals
- Quick Delivery if Made To Order (Sometimes Overnight)

Composite Bearings Product and Users Manual

Composite Bearing Machining and Fitting Instructions

We Can Offer:
Composite Bearings & Bushings
Propeller Shaft Stern Tube, Strut, Pump, Wear Pads & Other Applications
With or Without Liquid Lubrication Grooves
Grease, Oil, Water, Dry Run & Other Liquid Cooling Options
Up to 38 Inches Shaft Size
Up to 44 Inches Outside Diameter

Information Required to Quote Composite Bearings

Email us at info@pacificmarine.net for custom bearing requests

Equal to Orkot TLM Marine
