Shipping Container Side Parts

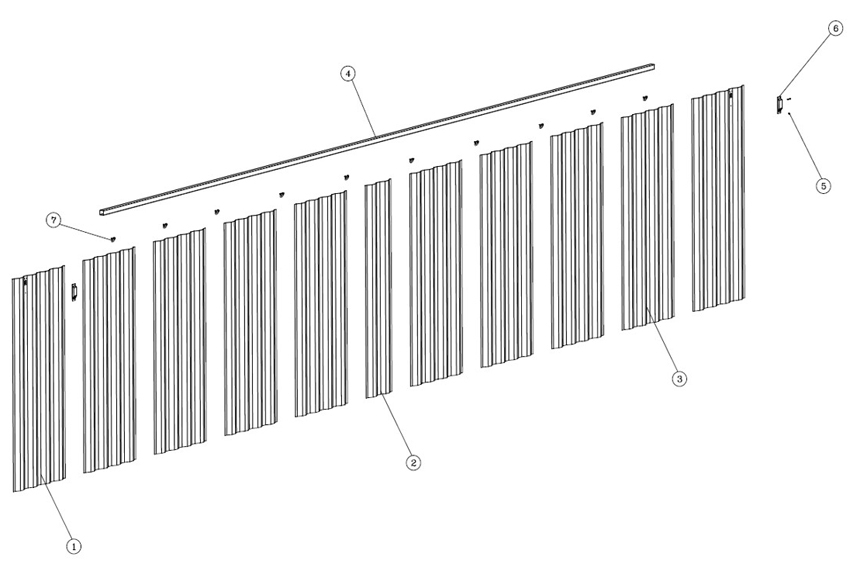

Exploded View Diagram with Part Numbers



*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!


SIDE WALL ASSEMBLY & SPARE PARTS
Basic Information Standard Height Containers High Cube Containers Quantity
Description Mark Part No. Size (mm)
Specification		 Unit Weight
(KGS)		 Part No. Size (mm)
Specification
 Unit Weight
(KGS)		 20 Foot 40 Foot
SIDE PANEL ① PMI-D02-01C 2.0X1116X2400 44.00 PMI-D02-01D 2.0X1116X2700 50.00 4 4
SIDE PANEL(SMALL) ②       PMI-D02-02E-5 1.6X559X2634 19.50 0 2
SIDE PANEL (MIDDLE) ③ PMI-D02-01A 1.6X1116X2400 35.00 PMI-D02-01B 1.6X1116X2700 39.00 6 16
TOP SIDE RAIL (SQUARE TUBE) ④ PMI-D09-01A 3.0X60X60X5702 31.10 PMI-D09-01B 3.0X60X60X11841 64.60 2 2
HUCK-BOLT ⑤ PMI-D29-01 M4.8X8 0.004 PMI-D29-01 M4.8X8 0.004 6 6
VENTILATOR ⑥ PMI-D25-01 Small Type 0.07 PMI-D25-01 Small Type 0.07 2 2
LASHING RING ⑦ PMI-D30-03 φ12X64 0.12 PMI-D30-03 φ12X64 0.12 10 20
