Shipping Container Front End Parts

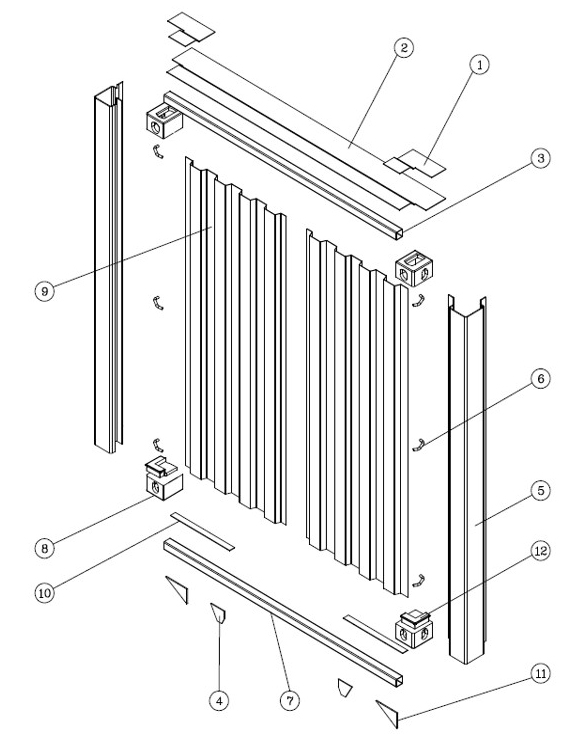

Exploded View Diagram with Part Numbers



*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!



FRONT END ASSEMBLY & SPARE PARTS
Basic Information Standard Height Containers High Cube Containers Quantity
Description Mark Part No. Size (mm)
/ Specification
Unit Weight
(KGS)
Part No. Size (mm)
/ Specification
Unit Weight
(KGS)
20 Foot 40 Foot
ROOF CORNER GUSSET             2 2
FRONT HEADER PLATE PMI-D12-01 3.0X100X26X277X2400 23.00 PMI-D12-03 4.0X95X26X304.8X2420 33.00 1 1
FRONT HEADER LOWER PMI-D17-01A 3.0X60X60X2112 11.50 PMI-D17-01A 3.0X60X60X2112 11.50 1 2
GOOSENECK TUNNEL GUSSET             0 2
FRONT CORNER POST PMI-D05-01A 6.0X209X225X2400 55.00 PMI-D05-01B 6.0X209X225X2700 62.00 2 2
LASHING RING PMI-D30-02 D12X140 0.15 PMI-D30-02 D12X140 0.15 6 6
FRONT SILL UPPER PMI-D17-01A 3.0X60X60X2112 11.50 PMI-D17-01A 3.0X60X60X2112 11.50 1 1
CORNER CASTING CCTR
CCTL
CCBR
CCBL
TL+TR+BL+BR * 1 11.00 CCTR
CCTL
CCBR
CCBL
TL+TR+BL+BR * 1 11.00 4 4
FRONT PANEL PMI-D03-01A 2.0X1024X2400 46.10 PMI-D03-01B 2.0X1024X2700 51.90 2 2
FLOOR SUPPORT             2 2
REINFORCEMENT PLATE             2 2
CORNER FLOOR SUPPORT PMI-D05-12 POLYPROPYLENE 0.70 PMI-D05-12 POLYPROPYLENE 0.70 2 2
FRONT BOTTOM RAIL Additional PMI-D11-01 4.5X115X154X2400 26.60 PMI-D11-01 4.5X115X154X2400 26.60 1 1
