Shipping Container Roof Parts

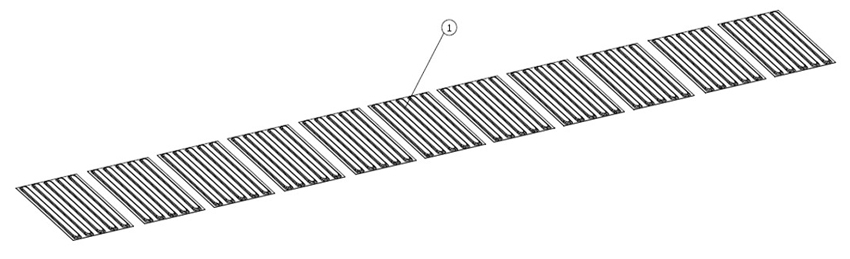

Exploded View Diagram with Part Numbers



*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!


ROOF ASSEMBLY & SPARE PARTS
Basic Information Standard Height Containers High Cube Containers Quantity
Description Mark Part No. Size (mm)
Specification		 Unit Weight
(KGS)		 Part No. Size (mm)
Specification
 Unit Weight
(KGS)		 20 Foot 40 Foot
ROOF PANEL - 5 Corrugation ① PMI-D01-01 2.0*1045*2356 42.00 PMI-D01-01 2.0*1045*2356 42.00 5 11
ROOF PANEL - 5 Corrugation For Repair PMI-D01-01-2 1.6X1045X2356 33.00 PMI-D01-01-2 1.6X1045X2356 33.00 5 11
