Shipping Container Base Parts

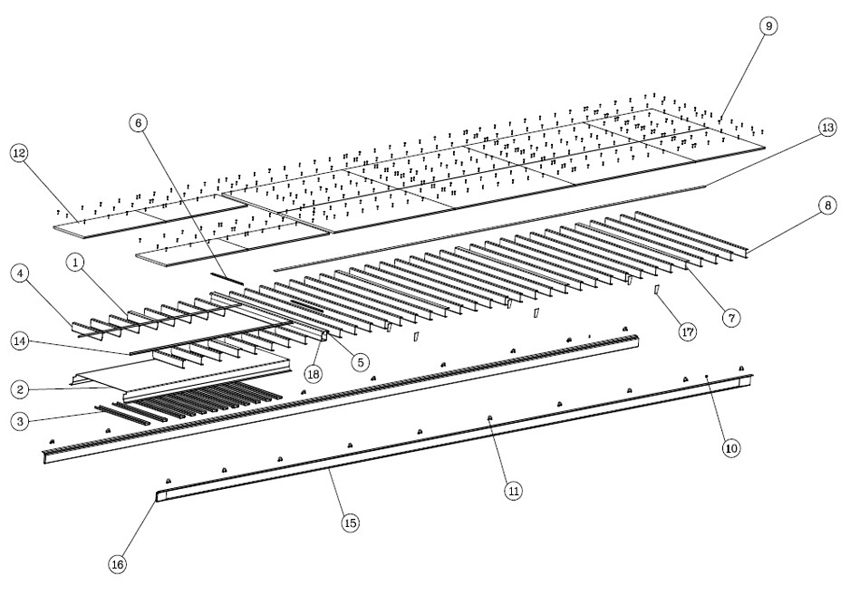

Exploded View Diagram with Part Numbers

*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!

BASE ASSEMBLY & SPARE PARTS
Basic Information		Standard Height Containers			High Cube Containers			Quantity
Description	Mark	Part No.	Size (mm) / Specification	Unit Weight (KGS)	Part No.	Size (mm) / Specification	Unit Weight (KGS)	20 Foot	40 Foot
WIDE OUTRIGGER	①				PMI-D33-01A-2	4.0X45X117X45X612	14.90	0	2
TUNNEL PLATE	②				PMI-D33-04-3	4.0X150X1153X150X3310	143.00	0	1
TUNNEL BOW	③				PMI-D33-03	4.5X26X100X26X1029	4.80	0	12
OUTRIGGER	④				PMI-D33-01A-2	4.0X45X117X45X612	14.90	0	14
FLOOR SUPPORT ANGLE	⑤							0	1
FLOOR SUPPORT ANGLE	⑥							0	2
WIDE CROSSMEMBER	⑦	PMI-D07-03A-10	4.0X45X122X75X2400	17.00	PMI-D07-03A-10	4.0X45X122X75X2400	17.00	2	3
CROSSMEMBER	⑧	PMI-D07-02C	4.5X45X122X45X2400	16.40	PMI-D07-02C	4.5X45X122X45X2400	16.40	12	25
SELF-TAPPING SCREW	⑨	PMI-D28-07A	M8X50 Trox Head	0.017	PMI-D28-07A	M8X50 Trox Head	0.02	200	200
DOOR HOOK	⑩	PMI-D30-01-01	φ8X27	0.05	PMI-D30-01-01	φ8X27	0.03	2	2
LASHING RING	⑪	PMI-D30-03	φ12X64	0.12	PMI-D30-03	φ12X64	0.12	10	20
FLOOR ASSEMBLY	⑫	Floor Parts Diagram Shipping Container
FLOOR CENTER RAIL	⑬	PMI-D15-05	4.0X50X3000	4.70	PMI-D15-05	4.0X50X3000	4.70	2	3
FLOOR SUPPORT ANGLE	⑭							0	4
BOTTOM SIDE RAIL	⑮	PMI-D08-01C	4.5X50X162X30X5702	44.72	PMI-D08-01B	4.5X50X162X30X11841	92.00	2	2
CORNER GUSSET PLATE	⑯							4	4
WIDE CROSSMEMBER WEB	⑰							6	9
TUNNEL BOLSTER	⑱				PMI-D33-01D	4.0X100X150X2334	34.00	0	1
