Shipping Container Rear End Parts (Frame)

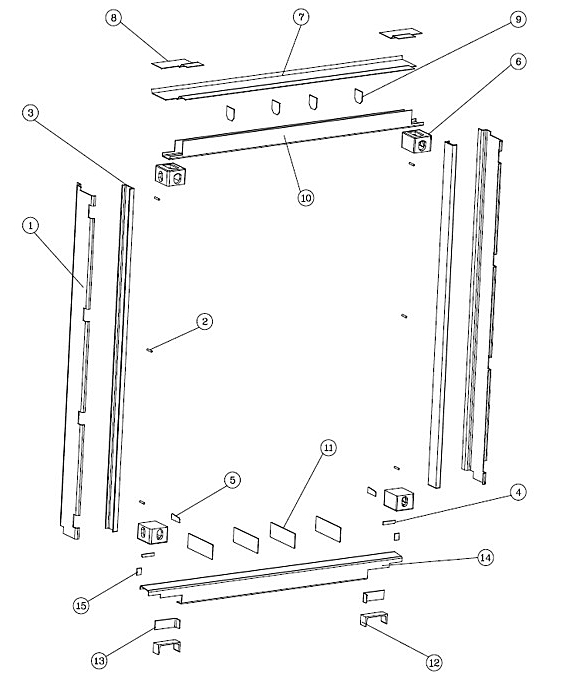

Exploded View Diagram with Part Numbers



*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!


REAR END (FRAME) & SPARE PARTS
Basic Information Standard Height Containers High Cube Containers Quantity
Description Mark Part No. Size (mm)
/ Specification		 Unit Weight
(KGS)		 Part No. Size (mm)
/ Specification
 Unit Weight
(KGS)		 20 Foot 40 Foot
REAR CORNER POST OUTER ① PMI-D06-01A 6.0X50X40X232X2400 37.00 PMI-D06-01B 6.0X50X40X232X2700 41.70 2 2
LASING ROD ② PMI-D30-05 φ12X58 0.12 PMI-D30-05 φ12X58 0.12 6 6
REAR CORNER POST INNER  ③ PMI-D06-03B 12X113X40X2353 32.70 PMI-D06-03C 12X113X40X2657 36.90 2 2
REAR CORNER COVER PLATE A ④             2 2
REAR CORNER COVER PLATE B ⑤             2 2
CORNER CASTING ⑥ CCTR
CCTL
CCBR
CCBL		 TL+TR+BL+BR * 1 11.00 CCTR
CCTL
CCBR
CCBL		 TL+TR+BL+BR * 1 11.00 4 4
DOOR HEADER PLATE (UPPER) ⑦ PMI-D13-01 3.0X93X26X275X2400 22.60 PMI-D13-02 3.0X93X26X227X2400 19.80 1 1
ROOF CORNER GUSSET ⑧             2 2
DOOR HEADER WEB ⑨             4 4
DOOR HEADER (LOWER) ⑩ PMI-D13-03 4.0X112X113X137X2400 26.00 PMI-D13-03 4.0X112X113X137X2400 26.00 1 1
DOOR SILL WEB ⑪             4 4
CHANNEL SECTION ⑫ PMI-D10-03 9.0X200X75X70 1.70 PMI-D10-03 9.0X200X75X70 1.70 2 2
CHANNEL COVER PLATE ⑬             2 2
DOOR SILL ⑭ PMI-D10-01 4.5X158X150X2400 30.90 PMI-D10-01 4.5X158X150X2400 30.90 1 1
DOOR FRAME COVER PLATE ⑮             8 8
