Shipping Container Floor Parts

Exploded View Diagram with Part Numbers

Typical 20 Foot Container Floorboard Layout

(Some Containers Differ)

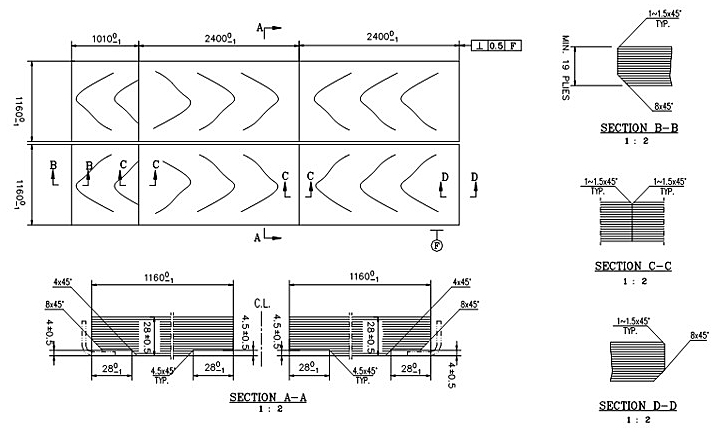

20 Foot Shipping Container Flooring Layout

Typical 20 Foot Container Floorboard Layout

(Some Containers Differ)

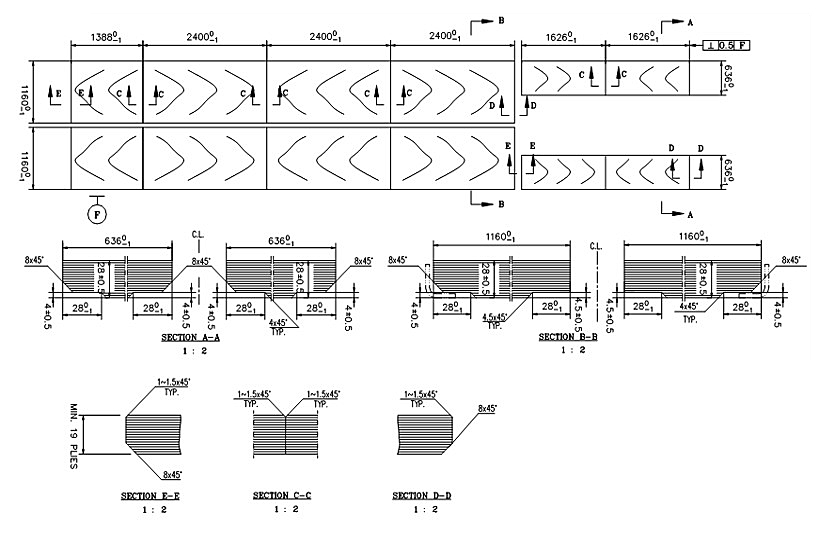

40 Foot Shipping Container Flooring Layout

*** Not All Shipping Containers Are Built Identically.

Parts Shown Will Fit in Majority of Container In Service.

Check Drawings Prior to Purchase!

FLOORING ASSEMBLY & SPARE PARTS
Basic Information	20 Foot Containers			40 Foot Containers			Quantity
Description	Part No.	Size (mm) / Specification	Unit Weight (KGS)	Part No.	Size (mm) / Specification	Unit Weight (KGS)	20 Foot	40 Foot
PLYWOOD FLOORING (STANDARD SIZE)	PMI-D32-01A-FH	28X1160X2400	65.00	PMI-D32-01A-FH	28X1160X2400	65.00	4	6
PLYWOOD FLOORING	PMI-D32-03A-FA1	28X1160X1010	27.00	PMI-D32-01B-SFA1	28X1160X1388	37.00	2	2
PLYWOOD FLOORING				PMI-D32-01E-FH	28X636X1626	24.00		4
