Model Air1030 Portable Pneumatic Capstan – 1,600 Lbs. Pull Max

Model Air1030 Portable Pneumatic Capstan - 100psi and 65 CFM

Features
• 800-lb single-line or 1,600-lb double-line lift
• Rotary vane air motor
• Worm gear reduction for positive load holding
• Portable and rugged
• Reversible with Pendant Control
• Capstan rope drum
• 50% Duty Cycle

Applications
Designed for material handling usage only.
Utility and construction applications
Tower and antenna erection
Transformer replacement

Construction Features:

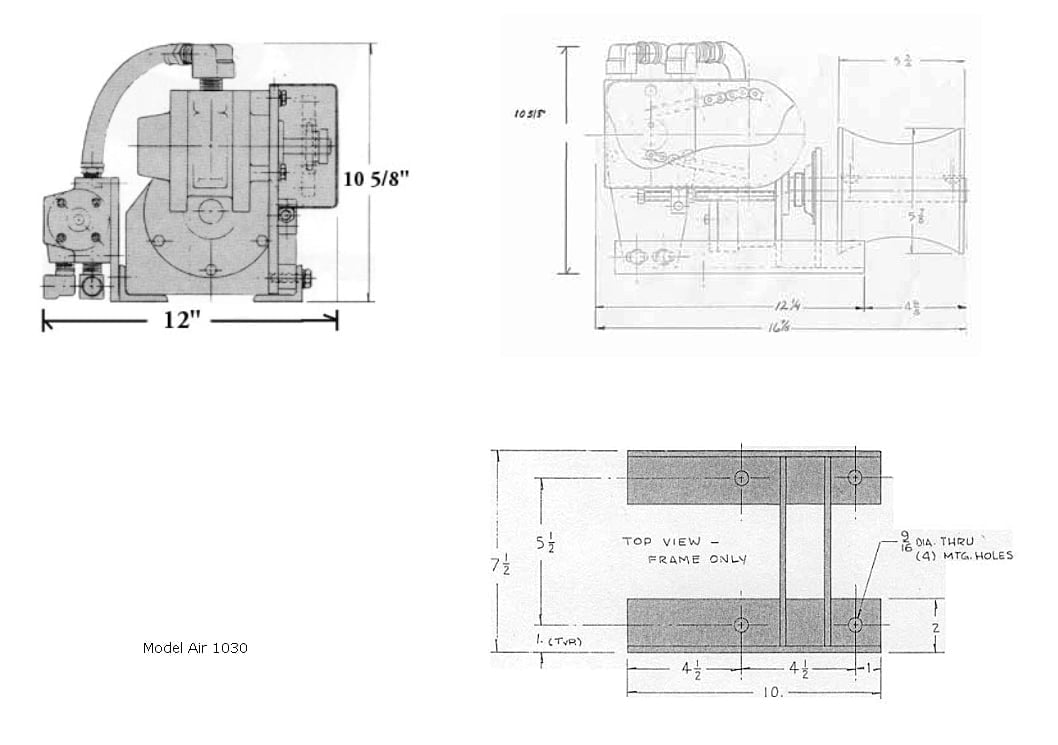

• Heavy-duty angle base drilled for four 1/2" bolts (9/16" mounting holes) with no welding required
• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath
• Hardened steel worm and forged bronze worm gear holds load in position when stopped.
• Stress-proof drum shaft
• Frictionless bearings

Gear System:
• 60:1 total reduction
• 30:1 hardened steel worm and forged bronze worm gear drive
• 2:1 motor to worm shaft chain drive with chain guard
• Adjustable chain drive tension

Hoisting Rope:
Consult your local dealer for type and size of rope.
Maintain at least three wraps of rope on capstan drum when in use. Heavier loads may require four wraps of rope.

Power:
• 4 HP rotary vane air motor
• Optimal performance with 100 psi and 65 cfm
• End user must provide clean dry lubricated air

Lifting Capacity:
• 800 lbs. single line lift
• 1600 lbs. double line lift

Speeds:
• 25 FPM: 800 lbs. single line lift
• 12 FPM: 1600 lbs. double line lift

Duty Cycle:
• 50% – 30 min/hr when operating at full load.

Shipping Weight: 71 lbs

Factory-Installed Options for Model Air1030 Portable Pneumatic Capstan: (Email PM&I for Quotes)
• Pole mount adapter
• Receiver hitch
• Swivel base
• Lever operated valve
• Foot pedal valve
