Bridge Fitting for Tension Only Side to Side ISO Shipping Containers
Bridge Fitting for Tension Only Side to Side ISO Shipping Containers

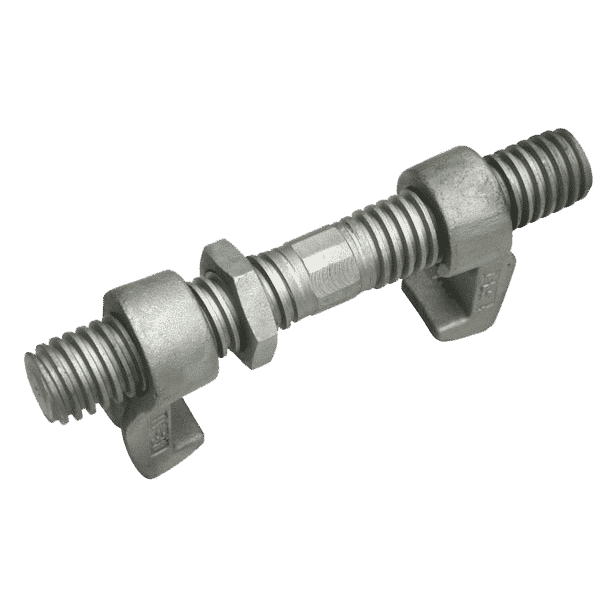

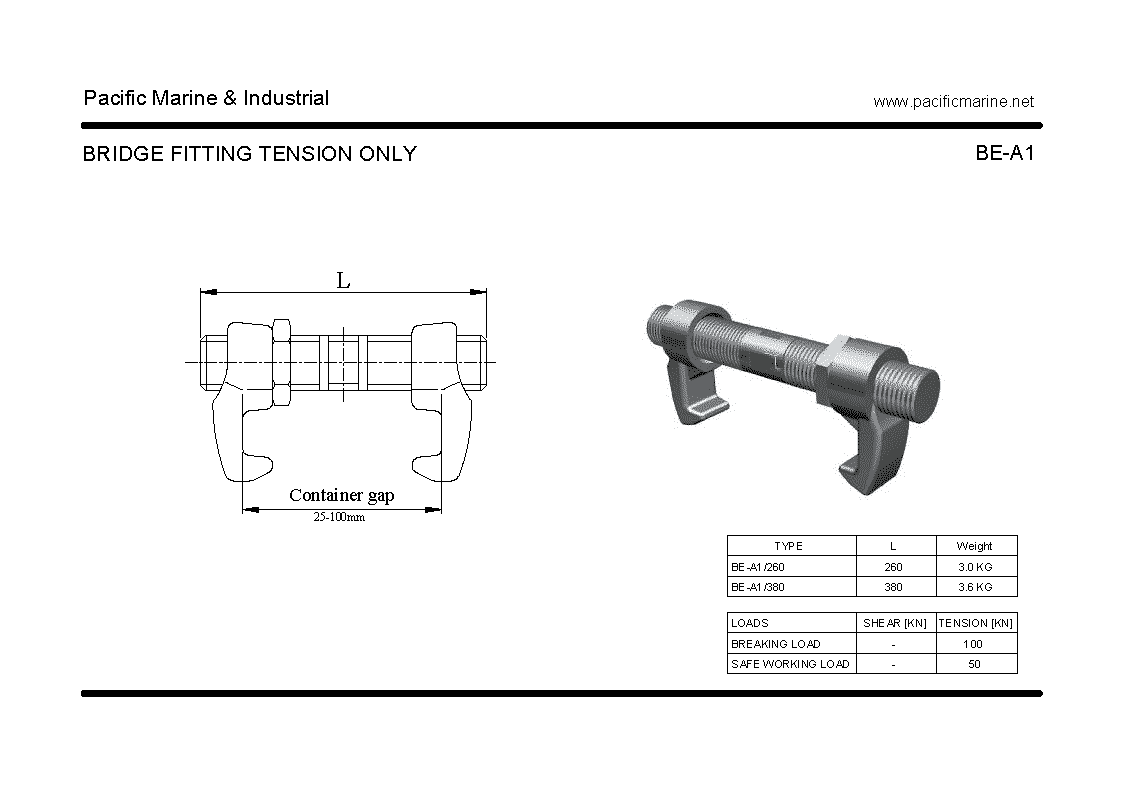

BE-A1/260 Bridge Fitting Tension Only – ISO Ocean Shipping Container

$28.56 – $29.96

SKU: N/A Category: Tag:

Most Stock Items Ship In 1 to 2 Business Days



Contact Us At info@pacificmarine.net

        • Large Quantity
        • Customization
        • International Shipping
        • Expedited Shipments
        • Resale
        • Other Options

Tension Only Type Container Bridge Fitting To Span Side to Side ISO Shipping Containers

Breaking Load: 100 kN = 10 Tons

Length: 260mm / 10.24 inches

Max Separation Container Top Use: 5 Inches

Max Separation Side Bottom Hole Use: 4 Inches

Max Separation Side Top Hole Use: 4.75 Inches

Class Society Approved: DNV-GL, ABS, CCS and Others

See Our Complete ISO Ocean Shipping Container Securing & Lashing Catalog

Additional information

Weight8 lbs
Dimensions11 × 4 × 4 in
