Portable Electric Cable Loop Drive Winch Hoist Model LD100AB: 115VAC – 800 Lbs. Pull Max


~1-2 Week Lead Time

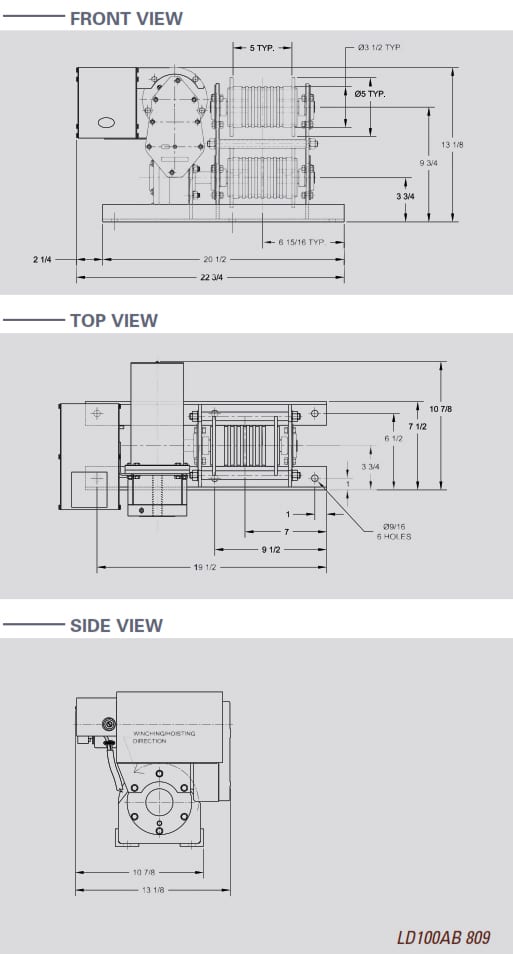

LD100AB Portable Electric Loop Drive with 115VAC Power and 800 Lbs. Pull

• Trifecta system 115 Volt brake motor with triple brake system for instant stopping
• Worm & worm gear drive for positive load holding
• Single phase motor
• Grooved drums for 1/4" cable
• Low voltage 10' pendant control
• Many available options

All LD100AB winches and hoists are designed for material handling usage only.
Handle rolling loads up to 20,000 lbs
Move carts in and out of production areas
Pull trailers through assembly stations
Pull tarps or covers over tanks and pits
Full power forward and reverse

Construction Features:
• Heavy-duty angle base drilled for six 1/2" mounting bolts
• Installation requires no welding
• Fully sealed aluminum gear housings with precision-cut gears running in an oil bath
• Hardened steel worm and forged bronze worm gear holds load in position when stopped
• Stress-proof drum shafts
• Frictionless bearings
• 286:1 gear reduction

• Universal 18,500 RPM reversible 1.25 HP brake motor (no-load speed)
• 15' power cord plugs into any 115 Volt AC grounded outlet
• 6 amp – No load
• 14 amp – Full load

Pulling Capacity:
• 20,000-lb rolling load capacity
• 800-lb line pull
• Rolling load capacity is dependent on fl oor surface and wheel/caster condition

• 59 RPM: no-load drum speed
• 37 FPF: 10,000-lb rolling load
• 31 FPM: 20,000-lb rolling load

Cable Drums:
• Two welded steel cable drums grooved for 1/4" cable
• Lower drum is gear driven
• Upper drum not powered

Cable Strength:
• Recommended 1/4" diameter cable has 7,000-lb breaking strength
• Safe working load: 1,400-lb line pull

Duty Cycle:
• 25%—15 min/hour

Shipping Weight: 102 lbs

Available Factory Options:
• 230 Volt single phase motor
• Freewheeling clutch
• Limit switch
• Emergency hand crank
• Variable speed control
• Radio remote control
• High speed gears

Additional information

Weight102 lbs
Dimensions24 × 15 × 15 in
