Marine Mooring Cleat Steel 18
Marine Mooring Cleat Steel 18

18 Inch Marine Mooring Cleat 2 Bolt Steel Rated for Load Capacity: Model PC2-18

$200.00

150 in stock

Category: Tag:

Most Stock Items Ship In 1 to 2 Business Days



Contact Us At info@pacificmarine.net

        • Large Quantity
        • Customization
        • International Shipping
        • Expedited Shipments
        • Resale
        • Other Options

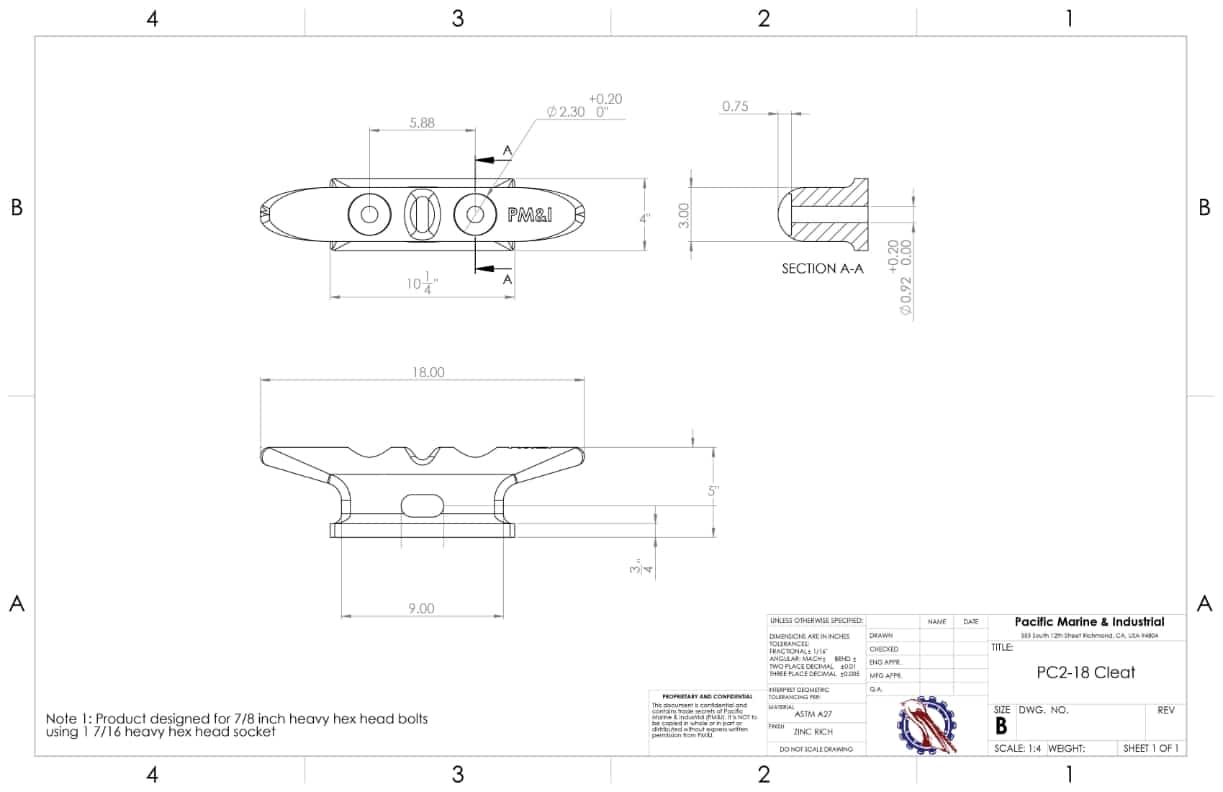

18 Inch 2 Bolt Steel Marine Mooring Cleat
15 to 38 Metric Ton Breaking Load Depending on Bolts Used
2 Bolt Steel Cleat with Zinc Rich Primer
Designed for 7/8 Inch Diameter Heavy Hex Head Bolts and Heavy Hex Head Socket

18 Inch Cleat:Breaking Load**Breaking Load**
BoltPounds (Shear)Metric Tons (Shear)
Grade 8: 7/8-9 Coarse Bolt83,160 lbs.37.8 mt
Grade 5: 7/8-9 Coarse Bolt66,528 lbs.20.24 mt
Grade 1: 7/8-9 Coarse Bolt33,264 lbs.15.2 mt

** Theoretical Breaking Load

See PM&I's Complete Bollard and Cleat Catalog Here
We Carry Up to 300 Ton Bollards and 57 Inch Cleats

Additional information

Weight45 lbs
Dimensions18 × 4 × 5 in
