Container Twist Locks

Container Twistlock Operation Rod System

For Any Type of Container Twistlock

Easily Combine Additional Rod Sections to Stack Height Needed

Container Twistlock Operaiton Rods Unlocking Rods Container Twistlock Operation Rod System

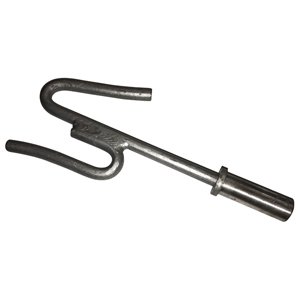

Head For 1 and 2 Wire and Knob Semi Automatic Twistlocks Style

Other Types of Head Available

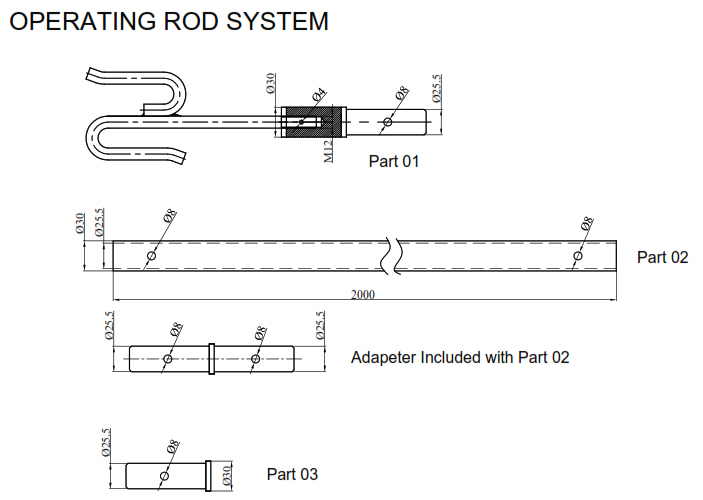

Part Number

Length

Description

BD-J1/OT/01

280mm / 0.92 Foot

Head with Adapter, Bolt, Nut

BD-J1/OT/02

2000mm / 6.56 Foot

Rod with Adapter, Bolt, Nut

BD-J1/OT/03

5mm / 1/4 Inch

Base Cap, Bolt, Nut

Other lengths are available



1.  Easily Combine Parts (Head, Rod and End Cap) for Any Container Height Needed


2. Easily Replace Broken Parts Instead of Buying New Rod


3.  Combine Rods for Taller Stack in Emergency



4. Other Head Styles Available

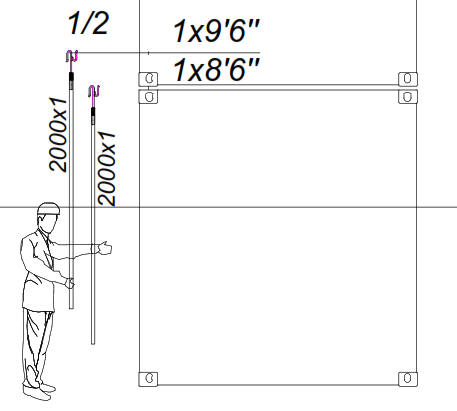

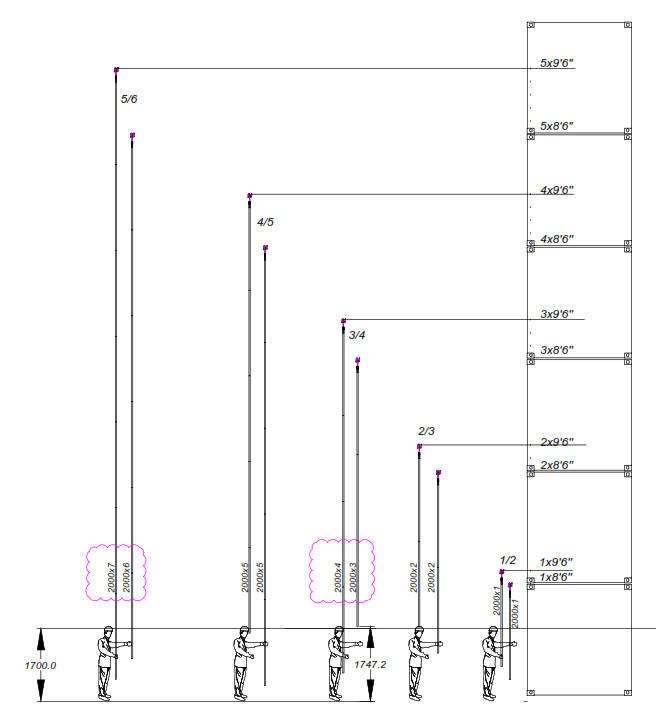

Container Twistlock Operation Rods - Container Twistlock Unlocking Rods



Between Tier

Length mm

Length Feet

280mm Heads

2000mm Rods

Bottom Caps

1st / 2nd

2280

7.48

1

1

1

2nd / 3rd

4280

14.04

1

2

1

3rd / 4th

6280

20.60

1

3

1

4th / 5th

8280

27.16

1

4

1

5th / 6th

10280

33.72

1

5

1

6th / 7th

12280

40.28

1

6

1



Container Twistlock Operaiton Rod Unlocking



Container Twistlock Operaiton Rod Unlocking
