Container Twist Locks

BD-V2 Semi Automatic Container Twist Locks

Class Society Approved: ABS, DNV-GL, CCS and Others

Container Twist Locks

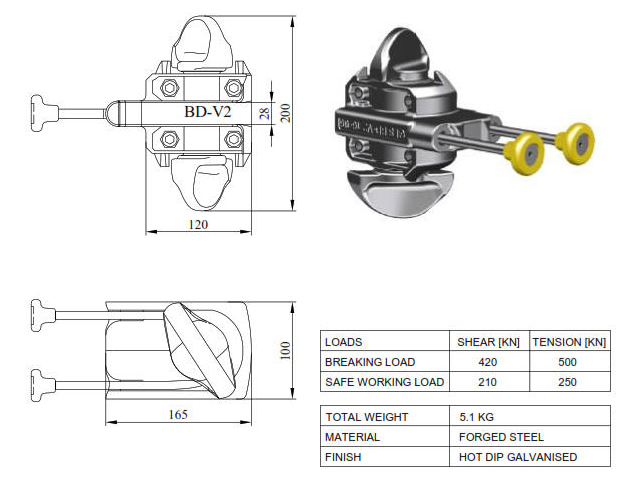

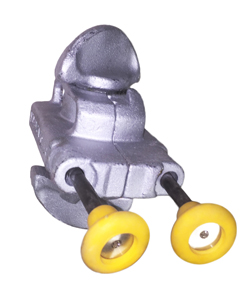

BD-V2-F Semi Automatic Twistlock

Forged Cone



Standard Semi Automatic Twistlock for Above Deck Use



Counter Part: Cargo Container or Foundations with ISO Hole



Breaking Load Tension: 500 kN / Breaking Load Shear: 420 kN

Type and Test Class Approved on Request


Container Twist Locks

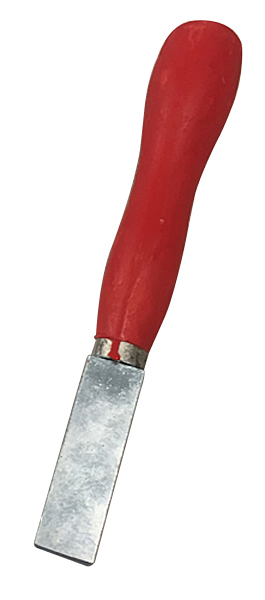

Twistlock Emergency Operation Tool
Twistlock Emergency Operation Tool


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?



Similar Design and Function Cross Reference:



GLS BD-V2

MacGregor CV-20

Lucky Sea F26
