Container Twist Locks

BD-R1 AAR Approved Inter Box Container Twist Lock

Railroad Twistlock - Inter Box Connector - Model BD-R1

Interbox Connector Container Twist Locks



Purchase Online Small Quantities of ISO Shipping Container Lashing & Securing Equipment

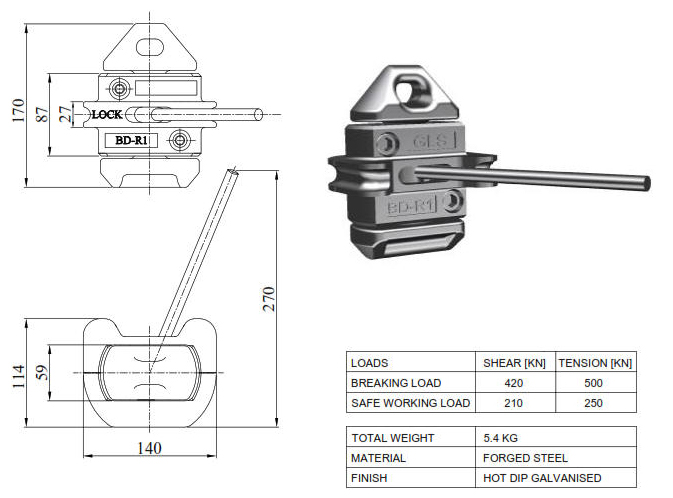

BD-R1

Manual Twistlock - Rail Road Use

Container Side Handle

Forged Cone



This product is made for railroad service on double stack container trains.



The BD-R1 meets the standards of the Association of American Railroads (AAR)

Manual of Standards and Recommended Practices Specification M-998



Left Locking

Designed for container side operation

Fits both 96 and 102 inch wide containers

Lock and unlock using aluminum operating rod from ground

Designed for 80,000 lbs. gross container weight


Container Twist Locks

Twistlock Emergency Operation Tool
Twistlock Emergency Operation Tool


Counterpart: ISO Corner Castings



Download Complete Container and Cargo Securing Catalog with Drawings
