Container Twist Locks

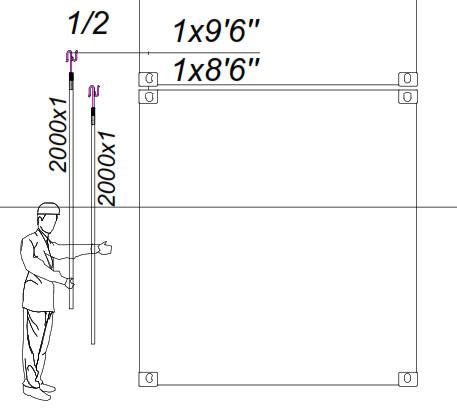

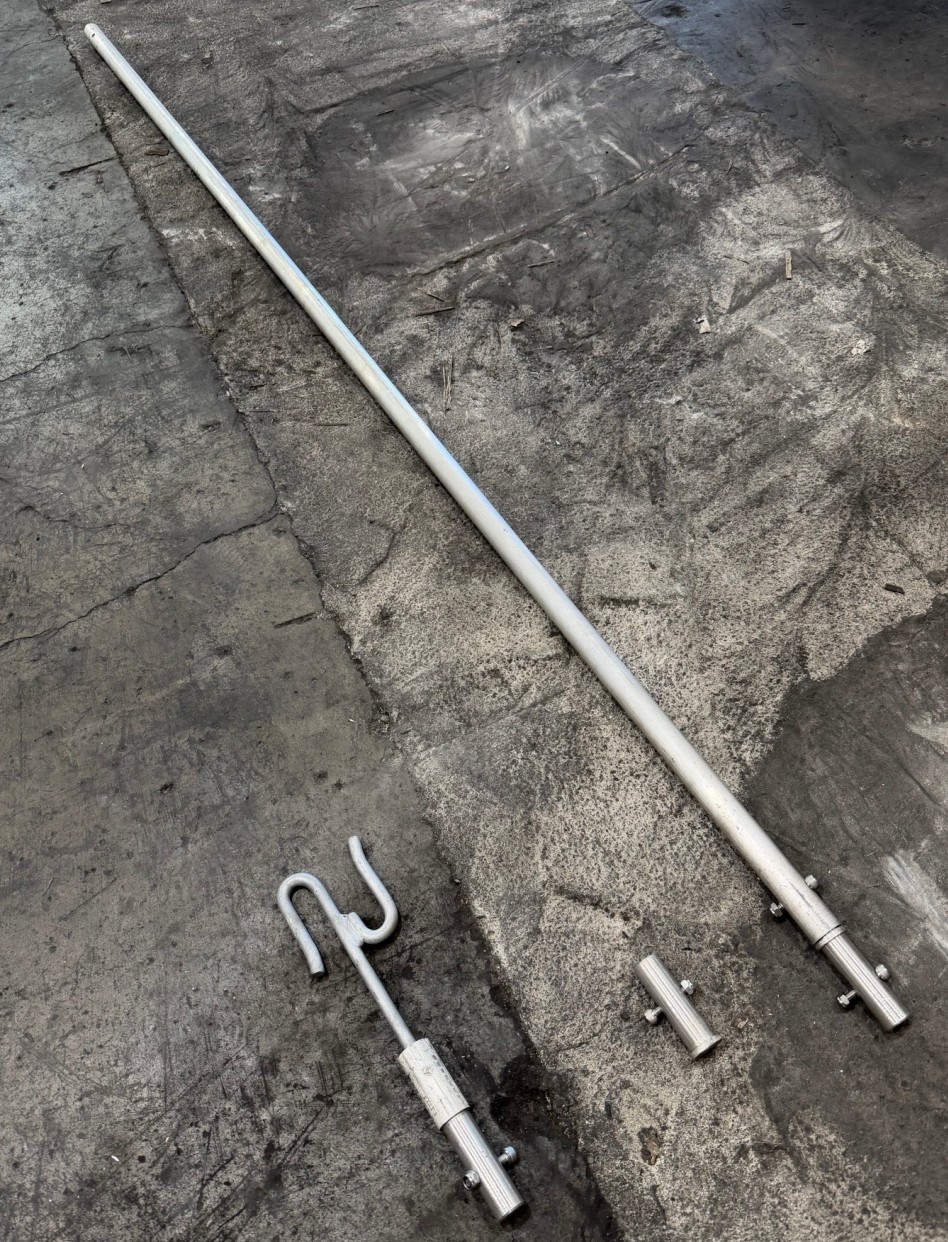

Container Twistlock Operation Rod System

For Any Type of Container Twistlock

Easily Combine Additional Rod Sections to Stack Height Needed

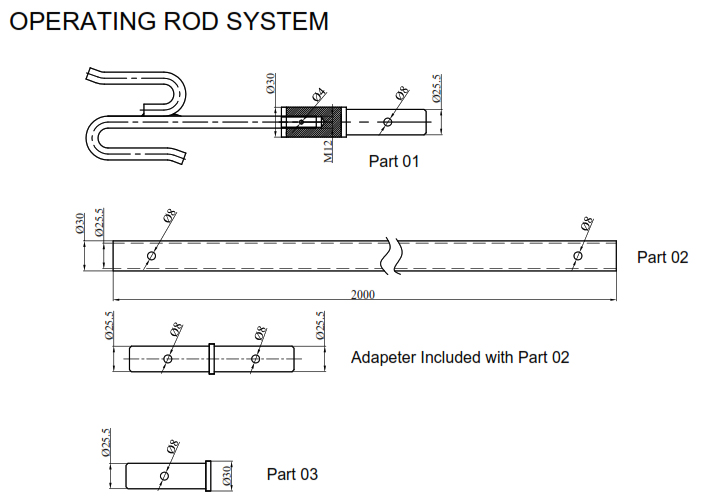

Container Twistlock Operaiton Rods  Container Twistlock Operation Rod System

Head For 1 and 2 Wire and Knob Semi Automatic Twistlocks Style

Other Types of Head Available



Part Number

Length

Description

BD-J1/OT/01

280mm / 0.92 Foot

Head with Adapter, Bolt, Nut

BD-J1/OT/02

2000mm / 6.56 Foot

Rod with Adapter, Bolt, Nut

BD-J1/OT/03

5mm / 1/4 Inch

Base Cap, Bolt, Nut

Other lengths are available



1.  Easily Combine Parts (Head, Rod and End Cap) for Any Container Height Needed


2. Easily Replace Broken Parts Instead of Buying New Rod


3.  Combine Rods for Taller Stack in Emergency



4. Other Head Styles Available



Between Tier

Length mm

Length Feet

280mm Heads

2000mm Rods

Bottom Caps

1st / 2nd

2280

7.48

1

1

1

2nd / 3rd

4280

14.04

1

2

1

3rd / 4th

6280

20.60

1

3

1

4th / 5th

8280

27.16

1

4

1

5th / 6th

10280

33.72

1

5

1

6th / 7th

12280

40.28

1

6

1



Container Twistlock Operaiton Rods

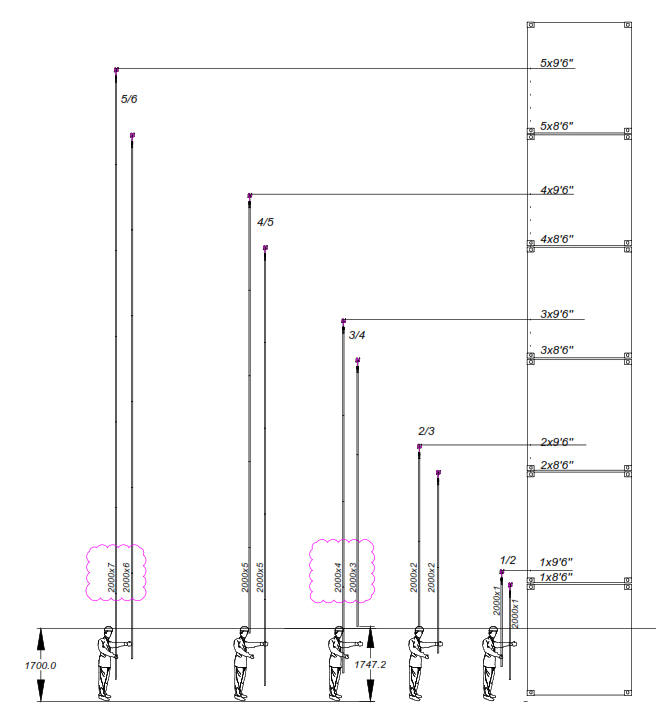

Container Twistlock Operaiton Rod Unlocking


Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?
