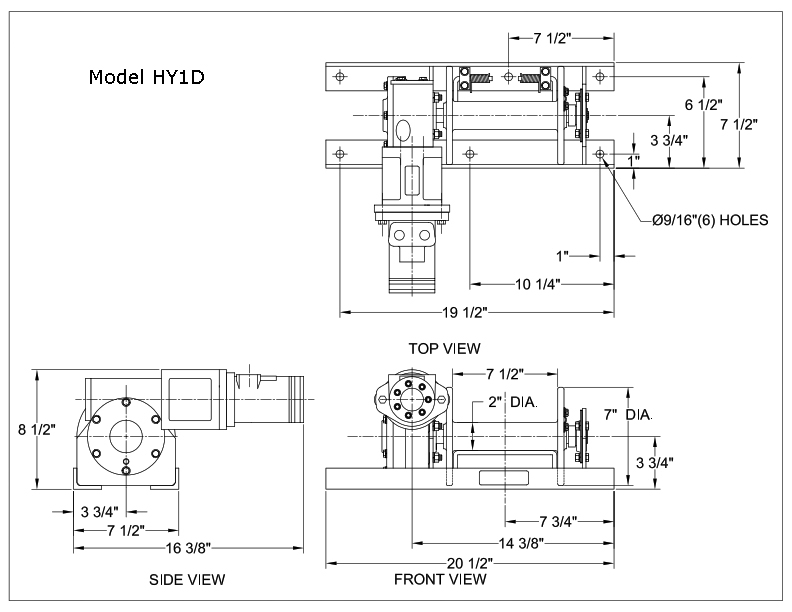

Myte Winch Hoist HY1D

Myte Winch Hoist HY1D



Purchase ONLINE Myte Winch Hoist Portable Winch Hoist and Capstans



Portable Hydraulic Winch Hoist HY1D / Up to 3,000 lbs. Pull Maximum with Double Line



Features

• 1,500-lb single-line or 3,000-lb double-line lift (if you double line then speed is 1/2)

• Worm gear reduction for positive load holding

• Rugged construction

• Hydraulic Power

• High-capacity cable drum

• Frictionless bearings

• Full Power Reversible

• Cable tensioner for better cable tracking



Applications

Pull rolling loads up to 30,000 lbs

Multiple-story construction site work

Long-lift applications

Tower erection and maintenance

Easily portable from job to job



Construction Features:

• Heavy-duty angle base drilled for six 1/2" bolts (9/16" mounting holes) with no welding required

• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath

• Stress-proof drum shaft

• Frictionless bearings



Power:

• High torque rotary hydraulic motor

• 1/2" - 14 NPTF hydraulic connections

• 2 GPM @ 900 psi minimum pump capacity

• 2,250 maximum psi



Typical System Operation: 12GPM and 1500 psi

• 17 FPM: no load drum speed

• 14 FPM: 1,000 lbs. - single line lift

• 10 FPM: 1500 lbs. - double line lift



Minimum System Operation: 2GPM and 900 psi

• 5 1/2 FPM: no load drum speed

• 4 1/2 FPM: 1,500 lbs. - single line lift

• 4 FPM: 1500 lbs. - double line lift



Lifting Capacity

• 1500 lbs. - Layers 1 and 2

• 1275 lbs. - Layer 3

• 900 lbs. - Full drum



Pulling Capacity–Rolling Load:

HY1D winch-hoists are rated at the vertical lifting capacity.

The chart below represents the weight of a rolling load that may be pulled up a given incline.

This chart is for reference only. All capacities are reduced to allow for nominal friction factors.



Incline and Max Load Weight (lbs.) (single line)

• 0% – (0°) = 30,000

• 10% – (6°) = 10,000

• 20% – (11°) = 5,000

• 40% – (22°) = 2,600

• 60% – (31°) = 1,900

• 80% – (39°) = 1,600

• 100% – (45°) = 1,400



Speeds:

• 25 FPM: 600 lbs – single-line lift

• 15 FPM: 1,250 lbs – single-line lift

• 7.5 FPM: 2,500 lbs – double-line lift

Note: All speeds are based on one layer of cable on drum.



Drum Storage:

• 1/8" – 1,000'

• 1/4" – 250'

• 3/16" – 450'

• 5/16" – 150'

For best results, use the minimum amount of cable required for application.

Maintain four wraps of cable on the drum at all times. Cable sold separately.

Length and size must be specified at time of order.



Cable Strength:

• Safe working load is 20% of breaking strength

• Top-quality galvanized cable available in the following breaking strengths:

1/8" – 2,000 lbs

3/16" – 4,200 lbs

1/4" – 7,000 lbs

5/16" – 9,800 lbs



Duty Cycle:

• 25% – 15 min/hr when operating at full load



Shipping Weight: 60 lbs



Factory-Installed Options (Email PM&I for Quotes)

• Clutch

• Alternative Drums


Myte Winch Hoist HY1D


Home ] Up ] Myte Winch Hoist 100AB ] Myte Winch Hoist 150AB ] Myte Winch Hoist 10-12 With Clutch ] Myte Winch Hoist 10-12 - No Clutch ] Myte Winch Hoist 20-12 ] Myte Winch Hoist Air1000 ] [ Myte Winch Hoist HY1D ] Myte Winch Hoist LD100AB ] Myte Winch Hoist AC36B ] Myte Winch Hoist DC48 ] Myte Winch Hoist 520 ] Myte Winch Hoist 510 ] Myte Winch Hoist 30-12 ] Myte Winch Hoist 30-12 Foot Switch ] Myte Winch Hoist 35-12 ] Myte Winch Hoist 300AB ] Myte Winch Hoist 300AB Foot Switch ] Myte Winch Hoist AIR1030 Capstan ] Myte Winch Hoist 402AB Pole Mount ] Myte Winch Hoist Hydraulic HY3D ] Myte Winch Hoist Hydraulic HY3D Bayonet ] Myte Winch Hoist 800AB Trolley ] Myte Winch Hoist 800AB Trolley No Limit Switch ] Myte Winch Hoist 80-12 Trolley ] Myte Winch Hoist HAC36B Trolley ] Myte Winch Hoist HDC48 Trolley ]
