Myte Winch Hoist AC36B

Myte Winch Hoist AC36B



Purchase ONLINE Myte Winch Hoist Portable Winch Hoist and Capstans



AC36B Portable Max Electric Winch Hoist with 115VAC power and 6,000 lbs. pull with double line.



See DC48 For 12VAC Powered Version



Features

• 3,000-lb single-line or 6,000-lb double-line lift

• Trifecta system 115 Volt brake motor with triple brake system for instant stopping

• Worm gear reduction for positive load holding

• Compact, heavy-duty construction

• Low voltage 10' pendant control

• Full power reversible

• Cable tensioner for better cable tracking



Applications

All AC36B winches and hoists are designed for material handling usage only.

Heavy-duty lifting

Ideal for in-plant use

Moving equipment

Lifting motors and heavy apparatus

Installation of elevator equipment



Construction Features:

• Heavy-duty base drilled for six 1/2" bolts (9/16" mounting holes) with no welding required

• Fully sealed aluminum housings, with precision-cut gears, run in an oil bath

• First reduction combines spur gears with hardened steel worm and forged bronze worm gear system.

Holds load in position when stopped.

• Second reduction uses hardened heavy-duty spur gears

• Gear guard encloses external gear reduction

• Frictionless bearings

• 1430:1 double reduction



Power:

• Universal 18,500 RPM reversible 1.25 HP brake motor (no-load speed)

• 15' power cord plugs into any 115 Volt AC grounded outlet

• 6 amp – No load

• 14 amp – Full load



Lifting Capacity:

• 3,000 lbs – 1-2 layers of cable (54' of 5/16" cable)

• 2,650 lbs – 3 layers of cable (100' of 5/16" cable)

• 2,150 lbs – full drum of cable (160' of 5/16" cable)



Pulling Capacity–Rolling Load:

AC36B winch-hoists are rated at the vertical lifting capacity.

The chart below represents the weight of a rolling load that may be pulled up a given incline.

This chart is for reference only. All capacities are reduced to allow for nominal friction factors.



Incline  /  Max Load Weight (lbs.)

• 0% – (0°) = 75,000

• 10% – (6°) = 24,000

• 20% – (11°) = 12,200

• 40% – (22°) = 6,400

• 60% – (31°) = 4,600

• 80% – (39°) = 3,800

• 100% – (45°) = 3,300



Speeds:

• 11 RPM: No-load drum speed

• 11 FPM: No-load drum speed

• 9 FPM: 1,000 lbs – single-line lift

• 7.25 FPM: 3,000 lbs – single-line lift

• 3.5 FPM: 6,000 lbs – double-line lift

Note: All speeds are based on one layer of cable on drum.



Drum Storage:

• 1/4" – 250'

• 5/16" �������� 160'

• 3/8" – 110'

For best results, use the minimum amount of cable required for application.

Maintain four wraps of cable on the drum at all times. Cable sold separately.

Length and size must be specified at time of order.



Cable Strength:

• 5-1 recommended safety factor

• Top-quality galvanized cable available in the following breaking strengths:

1/4" – 7,000 lbs

5/16" – 9,800 lbs

3/8" – 14,400 lbs



Duty Cycle:

• 25% – 15 min/hr when operating at full load



Shipping Weight: 132 lbs



Factory-Installed Options: (Email PM&I for Quotes)

• 230 Volt

• Clutch

• Upside-down mounting

• Model DC48 (12V DC power)

• Divided drum

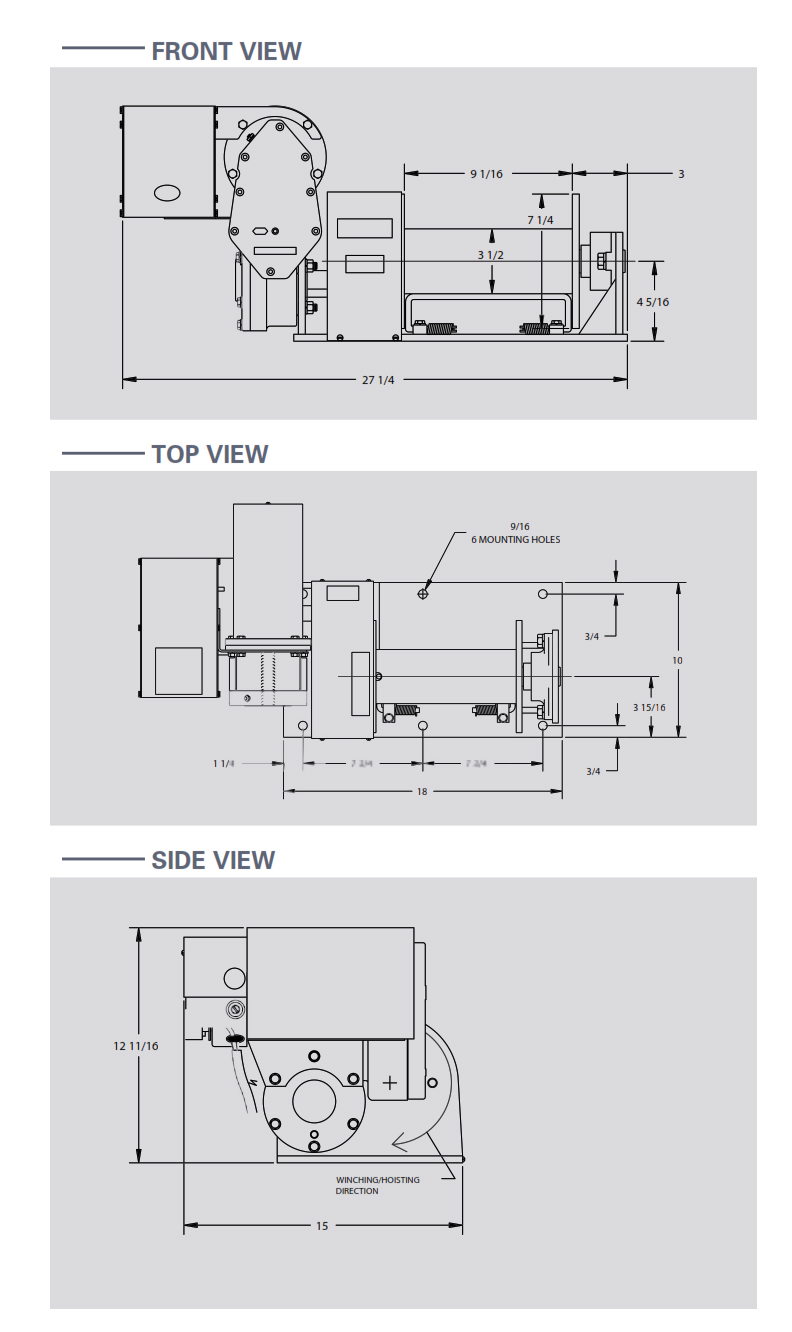

Myte Winch Hoist AC36B Drawing
