Swageless Fittings

Swageless Toggle

316 Stainless Steel

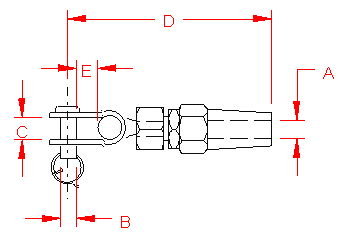

ITEM A B C D E WT
S0778-0703 1/8" 0.23" 0.35" 1.50" 0.45 0.11
S0778-0704 5/32" 0.23" 0.35" 1.75" 0.45 0.13
S0778-0905 3/16" 0.31" 0.40" 2.12" 0.58 0.24
S0778-1007 1/4" 0.37" 0.56" 2.50" 0.75 0.37
S0778-1309 5/16" 0.47" 0.63" 3.25" 0.55 0.68
S0778-1610 3/8" 0.61" 0.75" 3.50" 1.20 0.97
