How PM&I Can Help Prevent Delays

Swageless Fittings

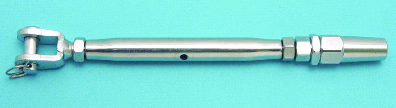

Swageless Stud and Jaw

316 Stainless Steel



ITEM A B C D E F WT
S0765-0703 1/8" 1/4" 4.20 7.00 0.36 0.23 0.24
S0765-0704 5/32" 1/4" 4.20 7.25 0.36 0.23 0.26
S0765-0904 5/32" 5/16" 4.32 7.50 0.42 0.31 0.42
S0765-0905 3/16" 5/16" 4.32 8.00 0.42 0.31 0.48
S0765-1005 3/16" 3/8" 4.90 8.75 0.48 0.36 0.62
S0765-1007 1/4" 3/8" 4.90 9.25 0.48 0.36 0.71
S0765-1307 1/4" 1/2" 5.87 11.50 0.55 0.47 1.50
