Swageless Fittings

Swageless Receiver

316 Stainless Steel

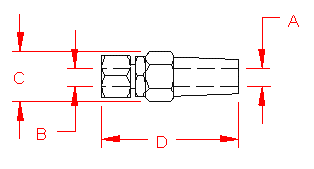

ITEM A B C D WT
S0770-0703 1/8" 1/4" 1.46" 0.54" 0.07
S0770-0704 5/32" 1/4" 1.68" 0.63" 0.12
S0770-0905 3/16" 5/16" 2.02" 0.75" 0.18
S0770-1007 1/4" 3/8" 2.50" 0.84" 0.28
S0770-1309 5/16" 1/2" 3.10" 1.07" 0.47
S0770-1610 3/8" 5/8" 3.50" 1.20" 0.63
S0770-2013 1/2" 3/4" 4.00" 1.40" 1.10
