Stainless Swageless Quick Attach Fittings

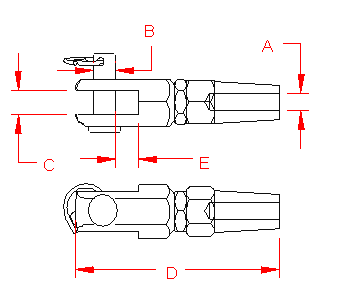

Swageless Quick Attach Jaw

316 Stainless Steel

 Swageless Quick Attach Jaw  Swageless Quick Attach Jaw

ITEM A B C D E WT
S0762-0003 1/8" 0.31" 0.23" 2.48" 0.23 0.12
S0762-0004 5/32" 0.31" 0.31" 2.87" 0.31 0.22
S0762-0005 3/16" 0.39" 0.39" 3.27" 0.39 0.32
S0762-0007 1/4" 0.47" 0.47" 3.74" 0.47 0.52
S0762-0009 5/16" 0.55" 0.55" 4.65" 0.55 0.77
S0762-0010 3/8" 0.63" 0.63" 5.24" 0.63 1.38
S0762-0013 1/2" 0.71" 0.74" 6.10" 0.74 2.10
