N716-25-26-15.5B

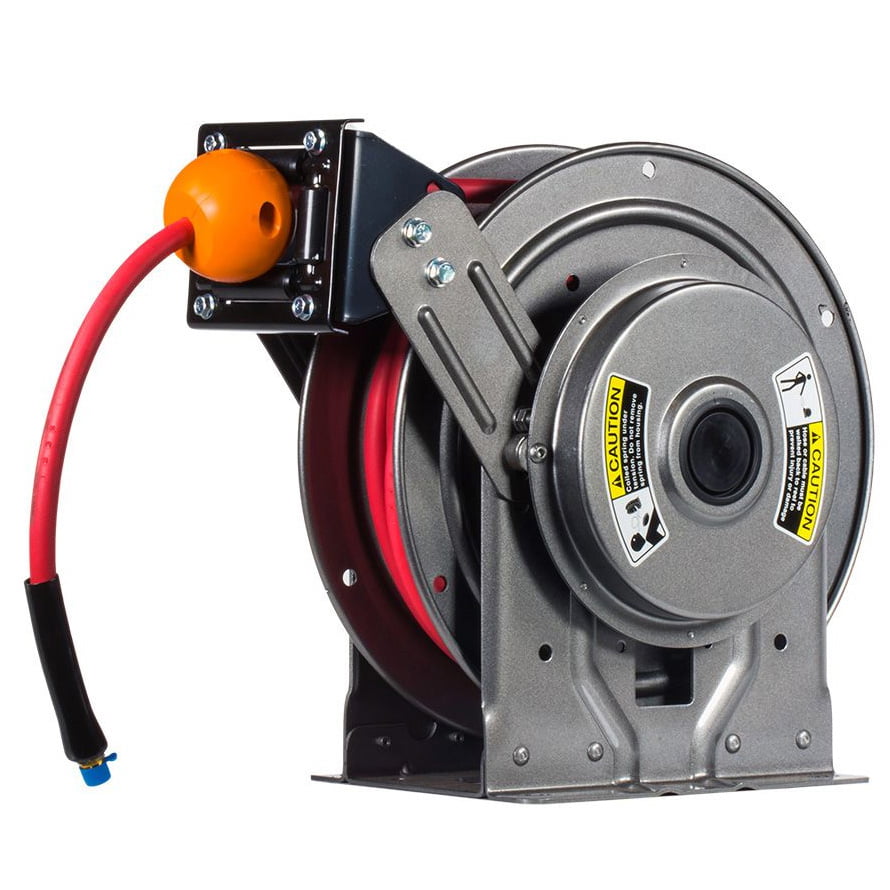

Spring Retractable Air Hose Reel Kit
With 1/2″ x 75′ 280 PSI Hose and Hose Stop

$896.89

N716-25-26-15.5B | Spring Retractable Air Hose Reel Kit | With 1/2" x 75' 280 PSI Hose and Hose Stop

Single textile braid reinforced synthetic rubber hose and HS-35 hose stop installed.

  • Standard N Series has a narrow frame and compact mounting base.
  • Non-sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet: 90° balanced pressure swivel joint, 1/2" female NPT threads.
  • Standard outlet: 1/2" female NPT threads.

See our Full Catalog of Hose and Cable Reels

Customizable Roller Positions for N716-25-26-15.5B | Spring Retractable Air Hose Reel Kit | With 1/2" x 75' 280 PSI Hose and Hose Stop

Repositionable rollers allow the hose to pay out of the reel in the exact direction you need depending on how the reel is mounted.

Roller Position TR

  • Reel will be installed in the upright position at any point from floor to eye level.
  • Reel will be installed on floor.
  • Reel will be installed on ceiling with hose/cable to pay out parallel to the ceiling.
  • Reel will be installed on truck bed or workbench with hose coming off of the top of the reel.

Roller Position SR

  • Reel will be installed in the upright position at any point from floor to eye level.
  • Reel will be installed on a wall with hose/cable to be retracted close to the wall.
  • Reel will be installed on ceiling and hose/cable will pay out parallel to and across the ceiling.
  • Reel will be installed on truck bed or workbench with hose coming off of the bottom of the reel.

Roller Position VR

  • Reel will be installed in the upright position and hose/cable will be pulled straight up from the reel.
  • Reel will be installed on ceiling to lift hose/cable, like in a lube shop.
  • Reel will be installed on a wall with hose/cable to be pulled straight out forward.

Additional information

Weight140 lbs
Dimensions30 × 15 × 30 in
