Stainless Swage Fittings

T Plate

316 Stainless Steel

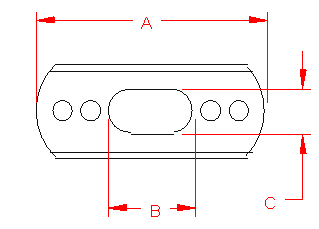

Item A Size B C Fits Part Number Weight
S0743-0003 1.97" 0.51" 0.28" S0742-0002. 0.01 lb
S0743-0004 3.46" 1.02" 0.39" S0742-0003. 0.05 lb
S0743-0005 2.60" 0.94" 0.47" S0742-0005. 0.05 lb
S0743-0007 4.84" 1.36" 0.61" S0742-0006, S0742-0007 0.20 lb
S0743-0008 5.94" 1.61" 0.75" S0742-0008, S0742-0010 0.50 lb
